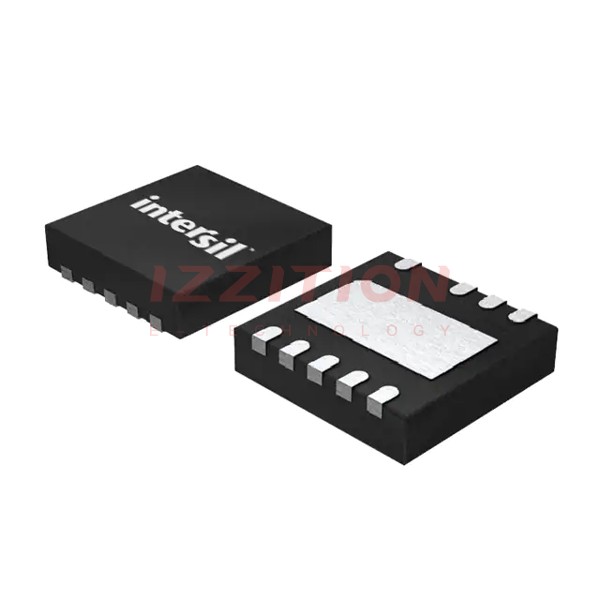

| Part Number | HIP2123FRTBZ-T | HIP2120FRTBZ-T | HIP2121FRTBZ-T | HIP2122FRTBZ-T | HIP2123FRTAZ-T |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Synchronous | Synchronous | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 1.4V, 2.2V | 3.7V, 7.93V | 1.4V, 2.2V | 1.4V, 2.2V | 1.4V, 2.2V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Inverting | Inverting | Inverting | Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V | 114 V | 114 V | 114 V | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 9-WDFN Exposed Pad | 9-WDFN Exposed Pad | 9-WDFN Exposed Pad | 9-WDFN Exposed Pad | 10-WDFN Exposed Pad |
| Supplier Device Package | 9-TDFN (4x4) | 9-TDFN (4x4) | 9-TDFN (4x4) | 9-TDFN (4x4) | 10-TDFN (4x4) |
