| Part Number | HIP2101IRZT | HIP2100IRZT | HIP2101IBZT | HIP2101IR4T | HIP2101IR4ZT | HIP2101IRT | HIP2101IRZ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V | 4V, 7V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V | 114 V | 114 V | 114 V | 114 V | 114 V | 114 V |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

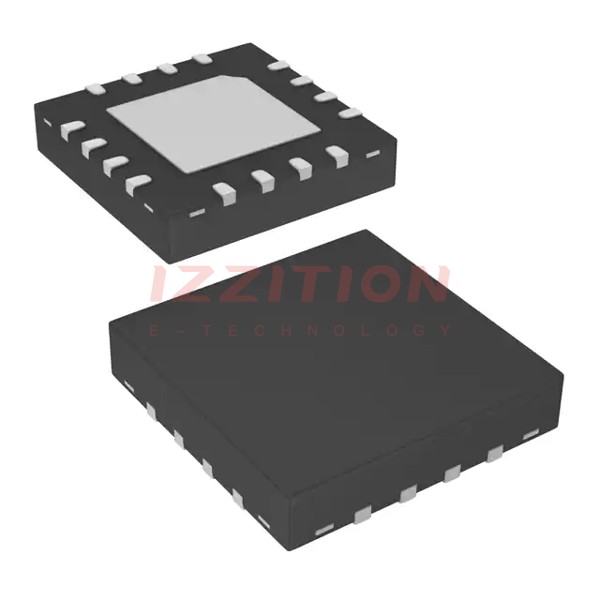

| Package / Case | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 12-VFDFN Exposed Pad | 12-VFDFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (5x5) | 16-QFN (5x5) | 8-SOIC | 12-DFN (4x4) | 12-DFN (4x4) | 16-QFN (5x5) | 16-QFN (5x5) |
