Please send RFQ , we will respond immediately.

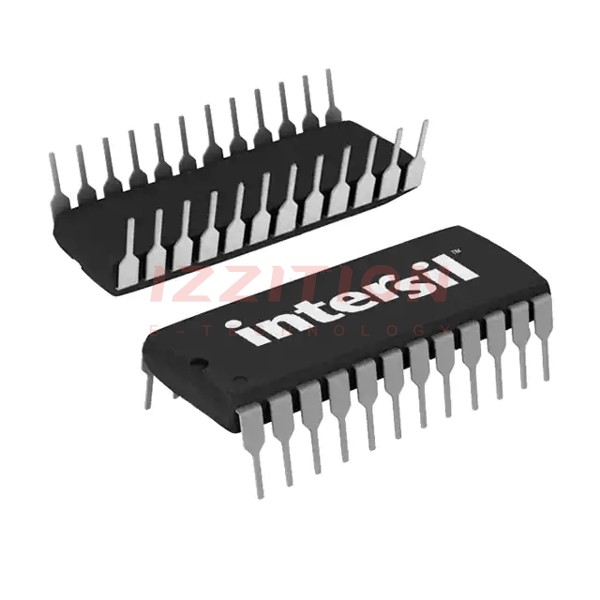

| Part Number | HI5812JIP | HI5813JIP | HI5812JIPZ | HI5812JIB |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 50k | 40k | 50k | 50k |
| Number of Inputs | 1 | 1 | 1 | 1 |
| Input Type | Single Ended | - | Single Ended | Single Ended |
| Data Interface | Parallel | - | Parallel | Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Architecture | SAR | SAR | SAR | SAR |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 5V | 0V ~ 3.3V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 0V ~ 3.3V | 5V | 5V |
| Features | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-PDIP | 24-SOIC |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
