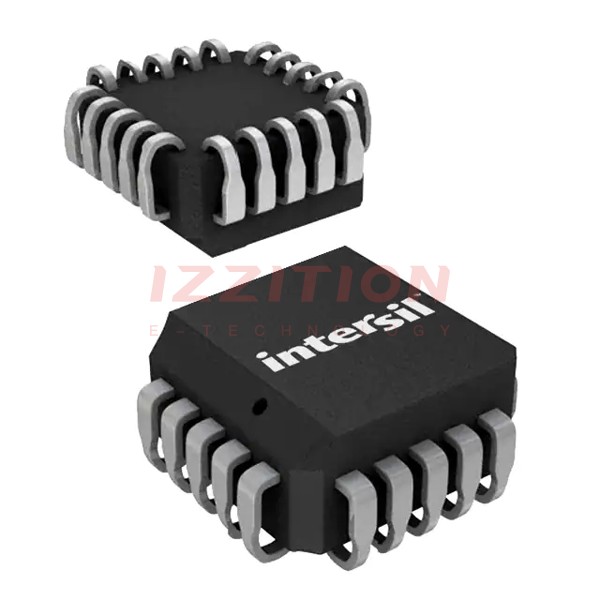

| Part Number | HI4P0201-5Z | HI9P0201-5Z | HI4P0201-5 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil |
| Product Status | Obsolete | Active | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 80Ohm | 80Ohm | 80Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 240ns, 500ns (Typ) | 185ns, 220ns (Typ) | 240ns, 500ns (Typ) |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF | 5.5pF, 5.5pF | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 50nA | 50nA | 50nA |
| Crosstalk | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-LCC (J-Lead) | 16-SOIC (0.154", 3.90mm Width) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 16-SOIC | 20-PLCC (9x9) |
