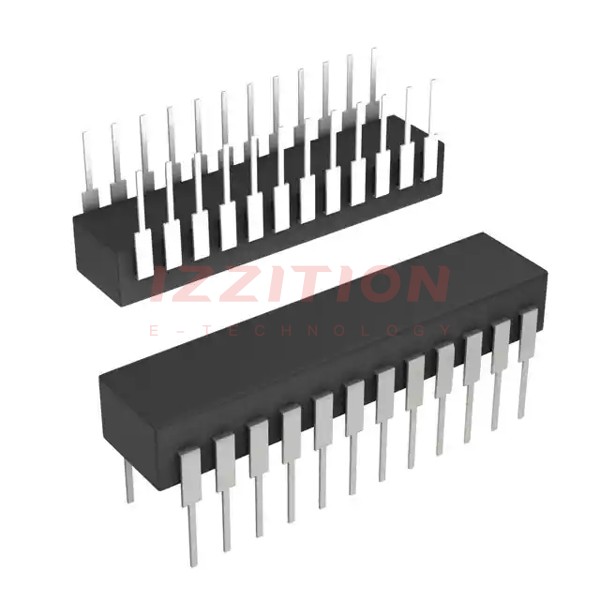

| Part Number | HI3-DAC80V-5 | HI3-DAC80V-7 | HI1-DAC80V-5 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 3µs (Typ) | 3µs (Typ) | 3µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | - | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| INL/DNL (LSB) | ±0.25, ±0.5 | ±0.25, ±0.5 | ±0.25, ±0.5 |
| Architecture | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C |
| Package / Case | 24-DIP (0.600", 15.24mm) | 24-DIP (0.600", 15.24mm) | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
