Please send RFQ , we will respond immediately.

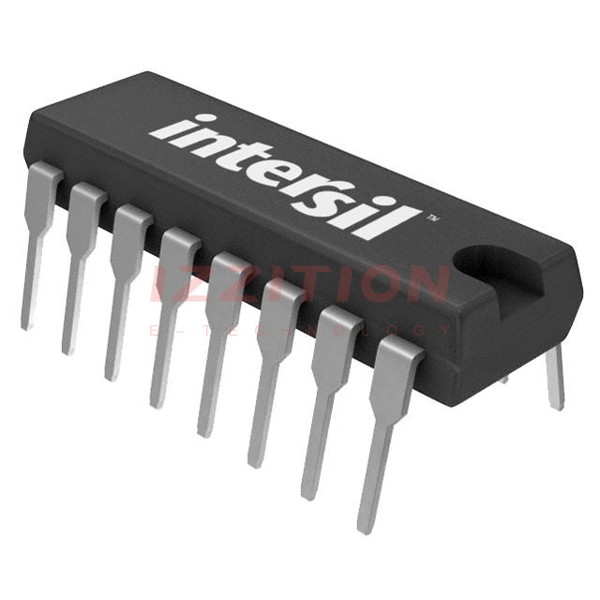

| Part Number | HI3-0201-5Z | HI3-0200-5Z | HI3-0201-5 | HI3-0201-5+ |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Harris Corporation | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NC | - |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | - |
| Number of Circuits | 4 | 2 | 4 | - |
| On-State Resistance (Max) | 80Ohm | 80Ohm | 80Ohm | - |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | - |
| Switch Time (Ton, Toff) (Max) | 240ns, 500ns (Typ) | 240ns, 500ns (Typ) | 240ns, 500ns (Typ) | - |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF | 5.5pF, 5.5pF | 5.5pF, 5.5pF | - |
| Current - Leakage (IS(off)) (Max) | 500nA | 500nA | 500nA | - |
| Crosstalk | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | - |
| Package / Case | 16-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 16-PDIP | 14-PDIP | 16-PDIP | - |
