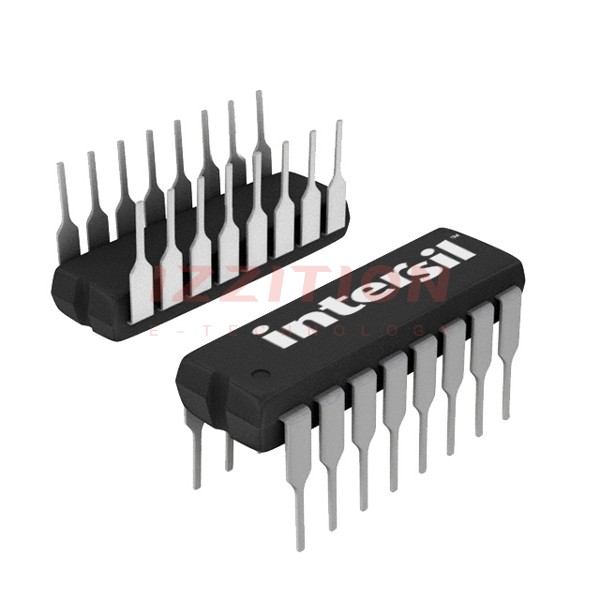

| Part Number | HI1-5047-5 | HI3-5047-5 | HI1-5048-5 | HI1-5047A-5 | HI1-5049-5 | HI1-5040-5 | HI1-5043-5 | HI1-5045-5 | HI1-5046-5 | HI1-5047-2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Harris Corporation | Harris Corporation | Intersil | Harris Corporation | Intersil | Harris Corporation | Harris Corporation | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active | Obsolete | Active | Active | Obsolete |
| Switch Circuit | 4PST - NO | 4PST | SPST | 4PST | DPST - NO | SPST | SPDT | DPST | DPDT | 4PST - NO |
| Multiplexer/Demultiplexer Circuit | - | 1:1 | 1:1 | 1:1 | 2:1 | 1:1 | 2:1 | 1:1 | 1:1 | - |
| Number of Circuits | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 2 | 1 | 1 |
| On-State Resistance (Max) | 75Ohm | 75Ohm | 45Ohm | 45Ohm | 45Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 1Ohm | 1Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | - | ±15V | ±15V | ±15V | - | ±15V | - | ±15V | ±15V | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns | 500ns, 500ns |
| -3db Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Charge Injection | - | - | - | - | - | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 2nA | 2nA | 2nA | 2nA | 2nA | 2nA | 2nA | 2nA | 2nA |
| Crosstalk | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz | -88dB @ 100kHz |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-PDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP |
