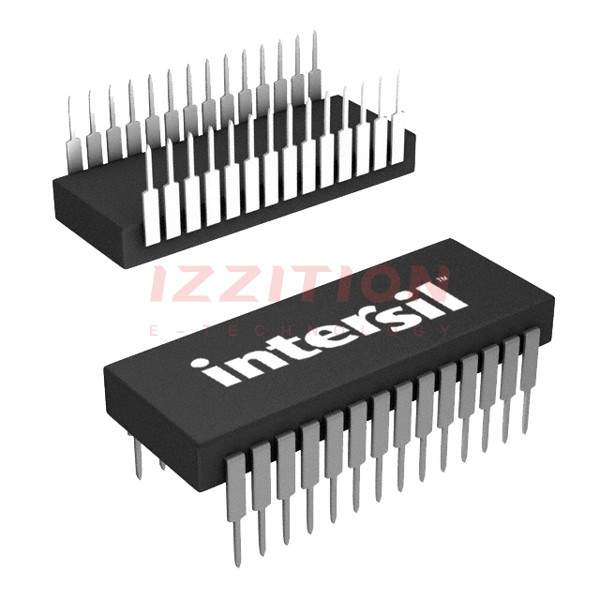

| Part Number | HI1-0546-5 | HI3-0546-5 | HI1-0547-5 | HI1-0549-5 | HI1-0548-5 | HI1-0506-5 | HI1-0516-5 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil | Harris Corporation | Renesas Electronics America Inc | Renesas Electronics America Inc | Harris Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active |
| Switch Circuit | - | - | - | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 16:1 | 8:1 | 4:1 | 8:1 | 16:1 | 8:1 |
| Number of Circuits | 1 | 1 | 2 | 2 | 1 | 1 | 2 |
| On-State Resistance (Max) | 1.8kOhm | 1.8kOhm | 1.8kOhm | 1.8kOhm | 1.8kOhm | 400Ohm | 750Ohm |
| Channel-to-Channel Matching (ΔRon) | 126Ohm | 126Ohm | 126Ohm | 126Ohm | 126Ohm | 20Ohm | - |
| Voltage - Supply, Single (V+) | - | - | - | ±15V | - | - | 33V |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | 33V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) | 300ns, 300ns (Typ) | 300ns, 300ns (Typ) | 300ns (Typ), 300ns (Typ) | 300ns, 300ns (Typ) | 250ns, 250ns (Typ) | 175ns, 175ns |
| -3db Bandwidth | - | - | - | - | - | - | - |
| Charge Injection | - | - | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF | 10pF, 52pF | 10pF, 30pF | - | 10pF, 25pF | 10pF, 52pF | 10pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 50nA |
| Crosstalk | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CERDIP | 28-PDIP | 28-CERDIP | 16-CERDIP | 16-CERDIP | 28-CERDIP | 28-CERDIP |
