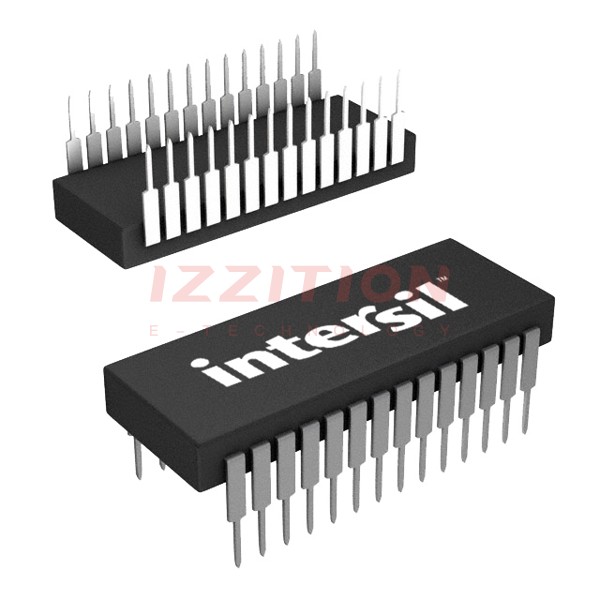

| Part Number | HI1-0507-2 | HI1-0507-7 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation |
| Product Status | Obsolete | Active |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 300Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm | 20Ohm |
| Voltage - Supply, Single (V+) | - | ±15V |
| Voltage - Supply, Dual (V±) | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns | 250ns (Typ), 250ns (Typ) |
| -3db Bandwidth | - | - |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 30pF | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | 30pA (Typ) |
| Crosstalk | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | 0°C ~ 75°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CERDIP | 28-CERDIP |
