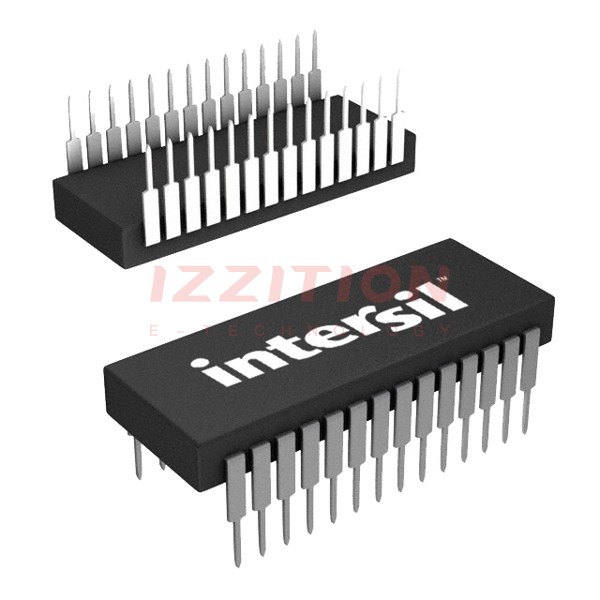

| Part Number | HI1-0506-5 | HI1-0516-5 | HI3-0506-5 | HI1-0508-5 | HI1-0509-5 | HI1-0506A-5 | HI1-0546-5 | HI1-0306-5 | HI1-0506-4 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Intersil | Intersil | Harris Corporation | Renesas Electronics America Inc | Renesas Electronics America Inc | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete | Active | Active |
| Switch Circuit | - | - | - | - | SP4T | - | - | SPST | 16PST |
| Multiplexer/Demultiplexer Circuit | 16:1 | 8:1 | 16:1 | 8:1 | 4:1 | 16:1 | 16:1 | 1:1 | 16:1 |
| Number of Circuits | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 1 |
| On-State Resistance (Max) | 400Ohm | 750Ohm | 400Ohm | 400Ohm | 400Ohm | 1.8kOhm | 1.8kOhm | 50Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 20Ohm | - | 20Ohm | 20Ohm | 20Ohm | - | 126Ohm | - | 20Ohm |
| Voltage - Supply, Single (V+) | - | 33V | - | - | - | - | - | 44V, ±22V | ±15V |
| Voltage - Supply, Dual (V±) | ±15V | 33V | ±15V | ±15V | ±15V | ±15V | ±15V | 44V, ±22V | ±15V |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) | 175ns, 175ns | 250ns, 250ns (Typ) | 250ns, 250ns (Typ) | 500ns, 500ns | 500ns, 500ns | 300ns, 300ns (Typ) | 250ns, 150ns | 250ns (Typ), 250ns (Typ) |
| -3db Bandwidth | - | - | - | - | - | - | - | - | - |
| Charge Injection | - | - | - | - | - | - | - | 30pC | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF | 10pF, 25pF | 10pF, 52pF | 10pF, 17pF | 10pF, 30pF | 10pF, 52pF | 10pF, 52pF | 16pF, 14pF | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | 50nA | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 30pA (Typ) | 5nA | 30pA (Typ) |
| Crosstalk | - | - | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C (TA) | 0°C ~ 75°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-DIP (0.600", 15.24mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 14-DIP (0.300", 7.62mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CERDIP | 28-CERDIP | 28-PDIP | 16-CERDIP | 16-CERDIP | 28-CERDIP | 28-CERDIP | 14-CERDIP | 28-CERDIP |
