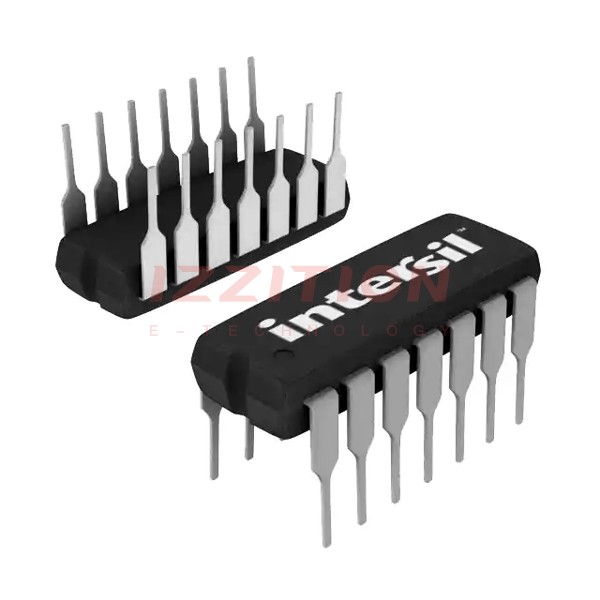

| Part Number | HI1-0303-5 | HI1-0306-5 | HI1-0305-5 | HI1-0300-5 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active | Active |
| Switch Circuit | SPDT | SPST | SPDT | SPST |
| Multiplexer/Demultiplexer Circuit | 2:1 | 1:1 | 1:2 | 1:1 |
| Number of Circuits | 2 | 2 | 1 | 2 |
| On-State Resistance (Max) | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - |
| Voltage - Supply, Single (V+) | 5V ~ 34V | 44V, ±22V | 44V, ±22V | ±15V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V | 44V, ±22V | 44V, ±22V | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns | 250ns, 150ns | 250ns, 150ns | 300ns, 250ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 30pC | 30pC | 30pC | - |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 14pF | 16pF, 14pF | 16pF, 14pF | 16pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA | 5nA | 5nA | 5nA |
| Crosstalk | - | - | - | - |
| Operating Temperature | 0°C ~ 75°C (TA) | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP | 14-CERDIP | 14-CERDIP | 14-CERDIP |
