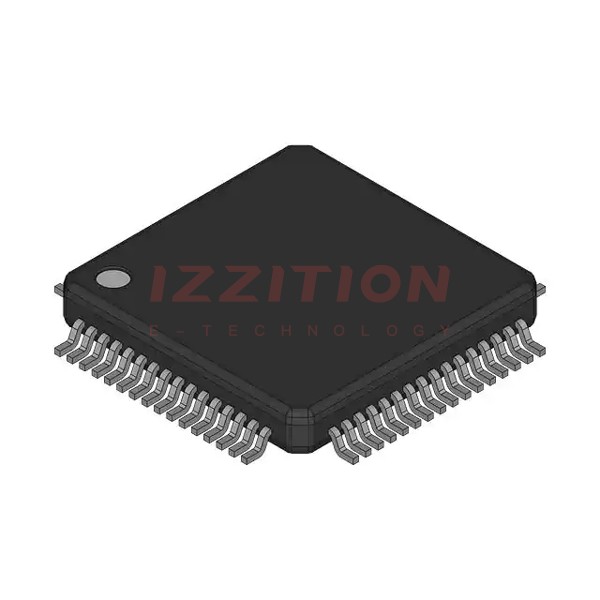

| Part Number | HD64F3687H | HD64F3687HV | HD64F3684H |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| Core Processor | H8/300H | H8/300H | H8/300H |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, SCI | I²C, SCI | I²C, SCI |
| Peripherals | PWM, WDT | PWM, WDT | PWM, WDT |
| Number of I/O | 45 | 45 | 45 |
| Program Memory Size | 56KB (56K x 8) | 56KB (56K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-BQFP | 64-BQFP | 64-BQFP |
| Supplier Device Package | 64-QFP (14x14) | 64-QFP (14x14) | 64-QFP (14x14) |
