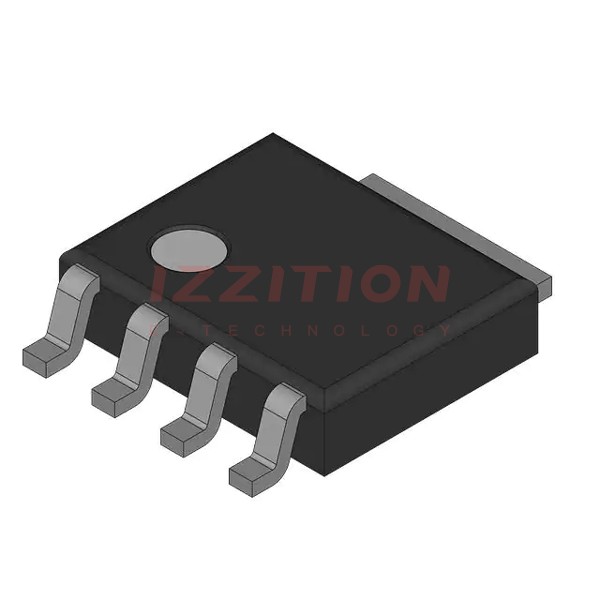

| Part Number | HAT1125HWS-E | HAT1127HWS-E |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete |
| FET Type | - | P-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 30 V |
| Current - Continuous Drain (Id) @ 25°C | - | 40A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 4.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | - | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | 125 nC @ 10 V |
| Vgs (Max) | - | +10V, -20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 5600 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 30W (Tc) |
| Operating Temperature | - | 150°C |
| Mounting Type | - | Surface Mount |
| Supplier Device Package | - | LFPAK |
| Package / Case | - | SC-100, SOT-669 |
