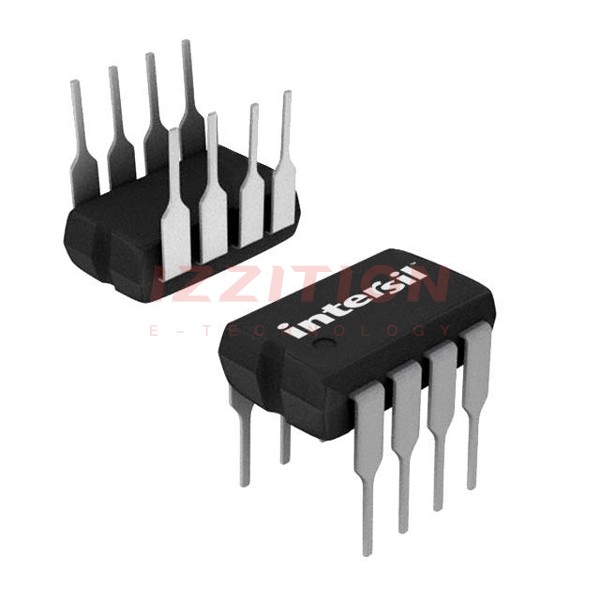

| Part Number | HA7-5101/883 | HA7-5111/883 | HA7-5151/883 | HA4-5101/883 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 6V/µs | - | 6V/µs | 6V/µs |
| Gain Bandwidth Product | 10 MHz | 100 MHz | 1.3 MHz | 10 MHz |
| -3db Bandwidth | - | 10 MHz | - | - |
| Current - Input Bias | - | 100 nA | 100 nA | 200 nA |
| Voltage - Input Offset | - | 500 µV | 500 µV | 3 mV |
| Current - Supply | - | - | 200µA | - |
| Current - Output / Channel | 25 mA | 30 mA | - | 25 mA |
| Voltage - Supply Span (Min) | 10 V | 40 V | 3 V | 10 V |
| Voltage - Supply Span (Max) | 30 V | 40 V | 30 V | 30 V |
| Operating Temperature | -55°C ~ 125°C | - | -55°C ~ 125°C (TA) | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 20-CLCC |
| Supplier Device Package | 8-CERDIP | 8-CERDIP | 8-CERDIP | 20-CLCC (8.89x8.89) |
