Please send RFQ , we will respond immediately.

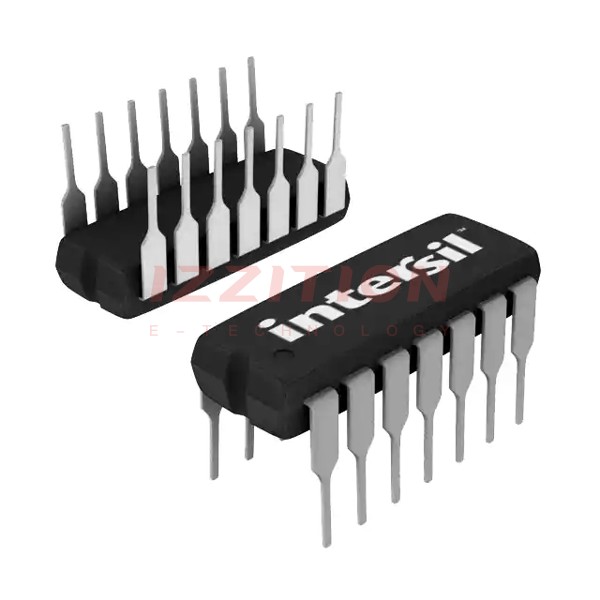

| Part Number | HA1-2540-5 | HA1-2840-5 | HA1-2542-5 | HA1-2540-4 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Obsolete | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 400V/µs | 625V/µs | 350V/µs | 400V/µs |
| Gain Bandwidth Product | 400 MHz | 600 MHz | 70 MHz | 400 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 5 µA | 5 µA | 15 µA | 5 µA |
| Voltage - Input Offset | 8 mV | 600 µV | 5 mV | 8 mV |
| Current - Supply | 20mA | 13mA | 30mA | 20mA |
| Current - Output / Channel | 20 mA | 20 mA | 100 mA | 20 mA |
| Voltage - Supply Span (Min) | 10 V | 14 V | 10 V | - |
| Voltage - Supply Span (Max) | 30 V | 30 V | 30 V | - |
| Operating Temperature | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) | 14-CDIP (0.300", 7.62mm) | 30-WFBGA, DSBGA | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP | 14-CERDIP | 30-DSBGA | 14-CERDIP |
