Renesas Electronics America Inc-H7N1002LSTL-E - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	75A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	10mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	155 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	9700 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	100W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LDPAK
Package / Case:	SC-83

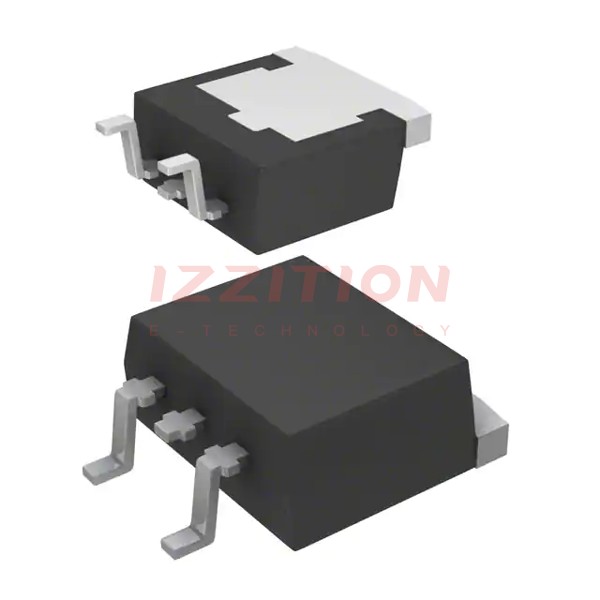

Renesas Electronics America Inc H7N1002LSTL-E
