| Part Number | F2976NEGK | F2977NEGK | F2972NEGK |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| RF Type | General Purpose | - | General Purpose |
| Topology | Reflective | Reflective | Reflective |
| Circuit | SPDT | SPDT | SPDT |
| Frequency Range | 5MHz ~ 10GHz | 30MHz ~ 6GHz | 5MHz ~ 10GHz |
| Isolation | 18dB | - | 18dB |
| Insertion Loss | 0.8dB | 0.45dB | 0.8dB |
| Test Frequency | 10GHz | 6GHz | 10GHz |
| P1dB | 40dBm | - | 40dBm |
| IIP3 | 77dBm | - | 77dBm |
| Features | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 2.5V ~ 5.25V | 2.7V ~ 5.25V | 2.5V ~ 5.25V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |

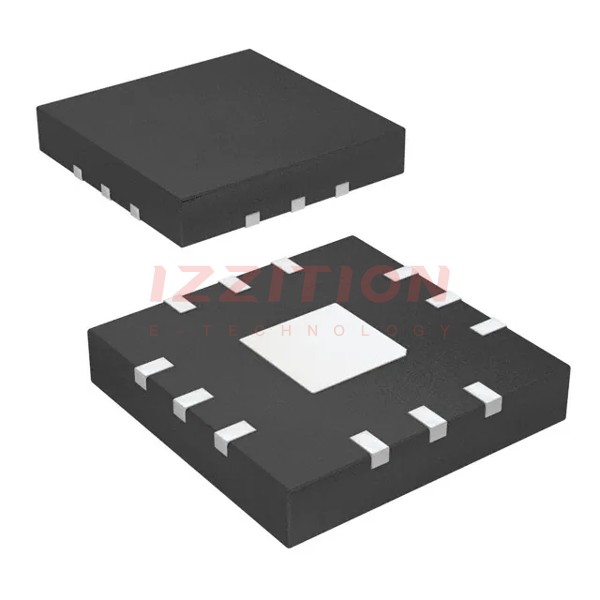

| Package / Case | 12-UFQFN Exposed Pad | 12-UFQFN Exposed Pad | 12-UFQFN Exposed Pad |
| Supplier Device Package | 12-VFQFPN (2x2) | 12-VFQFPN (2x2) | 12-VFQFPN (2x2) |
