Please send RFQ , we will respond immediately.
| Part Number | EL8176FIZ-T7 | EL8176FSZ-T7 | EL8176FWZ-T7 | EL8178FIZ-T7 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Elantec | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.13V/µs | 0.13V/µs | 0.13V/µs | 0.15V/µs |
| Gain Bandwidth Product | 400 kHz | 400 kHz | 400 kHz | 266 kHz |
| -3db Bandwidth | 1 MHz | 1 MHz | 1 MHz | - |
| Current - Input Bias | 500 pA | 500 pA | 500 pA | 1 pA |
| Voltage - Input Offset | 75 µV | 25 µV | 80 µV | 50 µV |
| Current - Supply | 85µA | 55µA | 55µA | 55µA |
| Current - Output / Channel | 31 mA | 31 mA | 31 mA | 31 mA |
| Voltage - Supply Span (Min) | 2.4 V | 2.4 V | 2.4 V | 2.4 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

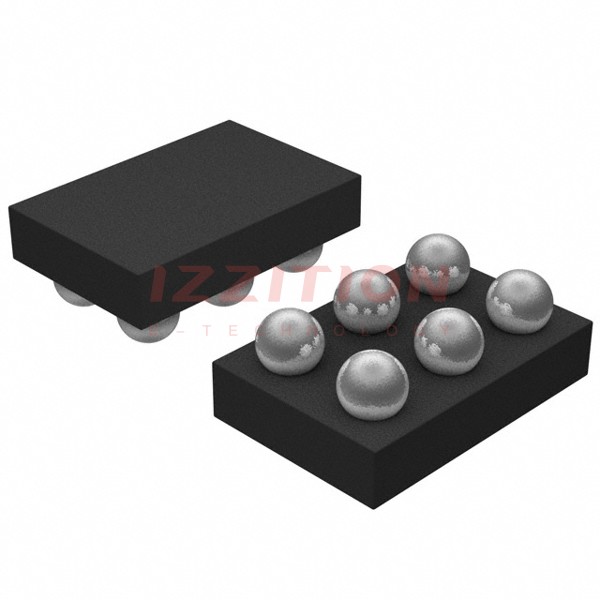

| Package / Case | 6-UFBGA, WLCSP | 8-SOIC (0.154", 3.90mm Width) | SOT-23-6 | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (3x2) | 8-SOIC | SOT-23-6 | 6-WLCSP (0.96x1.46) |
