Please send RFQ , we will respond immediately.

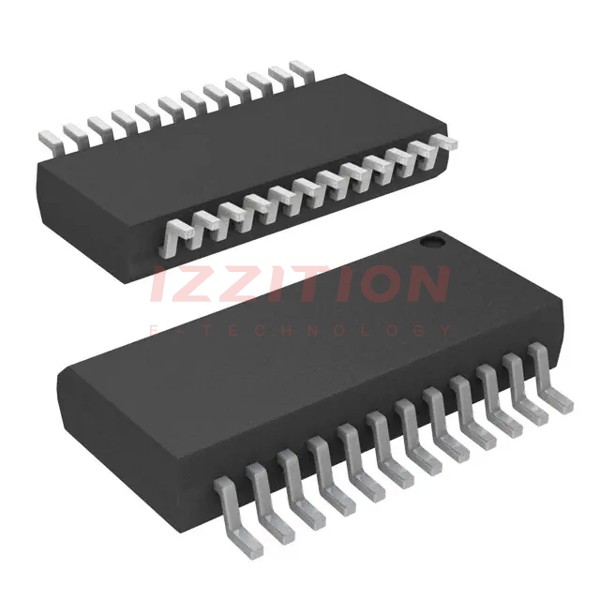

| Part Number | EL5370IUZ-T7 | EL5375IUZ-T7 | EL5378IUZ-T7 | EL5372IUZ-T7 | EL5373IUZ-T7 | EL5374IUZ-T7 | EL5371IUZ-T7 | EL5360IUZ-T7 | EL5370IU-T7 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Differential | Differential | Differential | Differential | Differential | Differential | Differential | Current Feedback | Differential |
| Number of Circuits | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Output Type | Differential | - | Differential | Differential | Differential | Differential | Differential | - | Differential |
| Slew Rate | 1100V/µs | 900V/µs | 1000V/µs | 700V/µs | 1100V/µs | 850V/µs | 700V/µs | 1700V/µs | 1100V/µs |
| Gain Bandwidth Product | - | 200 MHz | 350 MHz | 100 MHz | - | 200 MHz | 100 MHz | - | - |
| -3db Bandwidth | 100 MHz | 550 MHz | 700 MHz | 250 MHz | 450 MHz | 550 MHz | 250 MHz | 200 MHz | 100 MHz |
| Current - Input Bias | 2 µA | 12.5 µA | 14 µA | 6 µA | 13 µA | 14 µA | 3 µA | 4 µA | 2 µA |
| Voltage - Input Offset | 6 mV | 3 mV | 1.9 mV | 7 mV | 3 mV | 2.2 mV | 1.5 mV | 1.6 mV | 6 mV |
| Current - Supply | 7.4mA (x3 Channels) | 9.6mA (x3 Channels) | 12.5mA (x3 Channels) | 5.6mA (x3 Channels) | 12mA (x3 Channels) | 12.5mA (x3 Channels) | 7.5mA (x3 Channels) | 750µA (x3 Channels) | 7.4mA (x3 Channels) |
| Current - Output / Channel | 85 mA | 67 mA | 100 mA | 95 mA | 55 mA | 60 mA | 120 mA | 70 mA | 85 mA |
| Voltage - Supply Span (Min) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 5 V | 4.75 V |
| Voltage - Supply Span (Max) | 11 V | 11 V | 11 V | 11 V | 11 V | 11 V | 11 V | 10 V | 11 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) | 28-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) | 28-SSOP (0.154", 3.90mm Width) | 28-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-QSOP | 24-QSOP | 28-SSOP/QSOP | 24-QSOP | 24-QSOP | 28-SSOP/QSOP | 28-QSOP | 16-QSOP | 24-QSOP |
