| Part Number | EL5220TILZ-T13 | EL5220TIYZ-T13 | EL5220ILZ-T13 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| Amplifier Type | Voltage Feedback | Voltage Feedback | Voltage Feedback |
| Number of Circuits | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 12V/µs | 12V/µs | 10V/µs |
| Gain Bandwidth Product | 8 MHz | 8 MHz | 8 MHz |
| -3db Bandwidth | 12 MHz | 12 MHz | 12 MHz |
| Current - Input Bias | 2 nA | 2 nA | 2 nA |
| Voltage - Input Offset | 5 mV | 5 mV | 2 mV |
| Current - Supply | 550µA (x2 Channels) | 550µA (x2 Channels) | 500µA (x2 Channels) |
| Current - Output / Channel | 65 mA | 65 mA | 30 mA |
| Voltage - Supply Span (Min) | 4.5 V | 4.5 V | 4.5 V |
| Voltage - Supply Span (Max) | 19 V | 19 V | 16.5 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

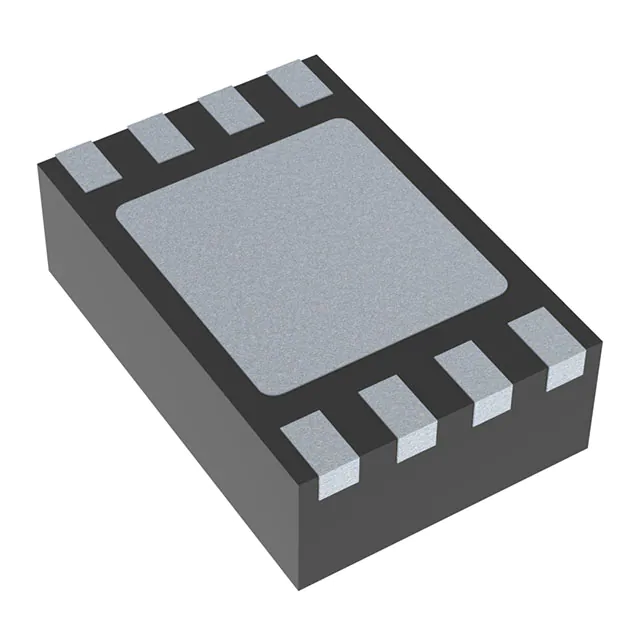

| Package / Case | 8-VFDFN Exposed Pad | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) | 8-MSOP | 8-DFN (2x3) |
