Please send RFQ , we will respond immediately.
| Part Number | EL5192CWZ-T7A | EL5193CWZ-T7A | EL5192ACWZ-T7A |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Current Feedback | Current Feedback | Current Feedback |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 2800V/µs | 2600V/µs | 2800V/µs |
| Gain Bandwidth Product | - | - | - |
| -3db Bandwidth | 600 MHz | 300 MHz | 600 MHz |
| Current - Input Bias | 3 µA | 1 µA | 3 µA |
| Voltage - Input Offset | 1 mV | 1 mV | 1 mV |
| Current - Supply | 6mA | 4mA | 6mA |
| Current - Output / Channel | 120 mA | 120 mA | 120 mA |
| Voltage - Supply Span (Min) | 5 V | 5 V | 5 V |
| Voltage - Supply Span (Max) | 10 V | 10 V | 10 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

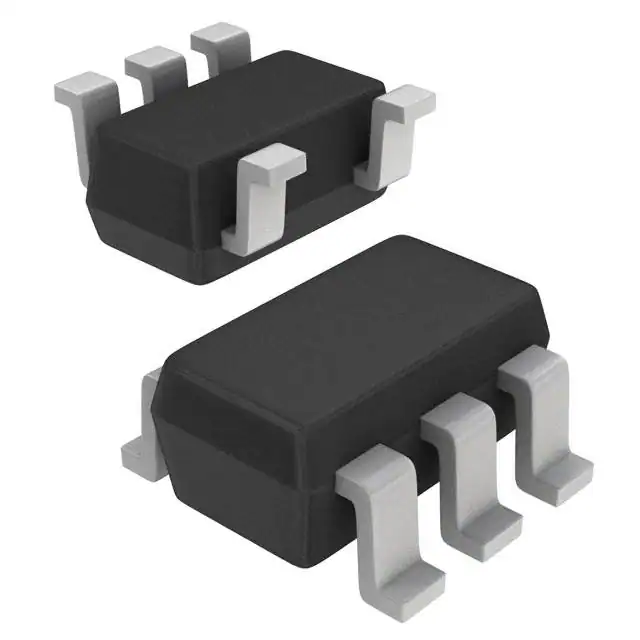

| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SOT-23-6 |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-6 |
