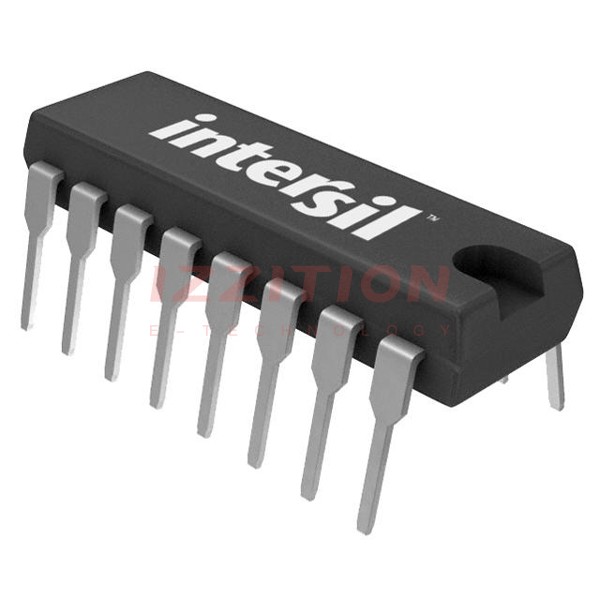

| Part Number | DG508ACJZ | DG508ACJ | DG508ACJ+ |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active |
| Switch Circuit | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 | 1 |
| On-State Resistance (Max) | 400Ohm | 450Ohm | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm | 27Ohm | 27Ohm |
| Voltage - Supply, Single (V+) | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±4.5V ~ 18V | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs | 1.5µs, 1µs | 1.5µs, 1µs |
| -3db Bandwidth | - | - | - |
| Charge Injection | 4pC | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF | 5pF, 25pF | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA |
| Crosstalk | - | - | - |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 16-PDIP | 16-PDIP |
