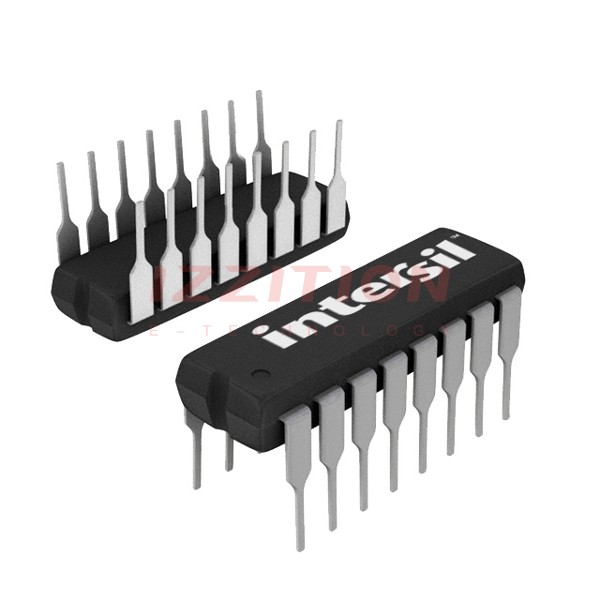

| Part Number | DG508ABK | DG508ABY | DG509ABK | DG508AAK |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Harris Corporation | Analog Devices Inc./Maxim Integrated | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Switch Circuit | - | - | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 4:1 | 8:1 |
| Number of Circuits | 1 | 1 | 2 | 1 |
| On-State Resistance (Max) | 400Ohm | 450Ohm | 450Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 24Ohm | 27Ohm | 27Ohm | 24Ohm |
| Voltage - Supply, Single (V+) | - | 44V | - | - |
| Voltage - Supply, Dual (V±) | ±15V | 44V | ±4.5V ~ 18V | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs | 1µs (Typ), 400ns (Typ) | 1.5µs, 1µs | 1.5µs, 1µs |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 4pC | 6pC | - | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF | 5pF, 25pF | 5pF, 12pF | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 5nA | 1nA | 1nA |
| Crosstalk | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C (TA) | -25°C ~ 85°C | -20°C ~ 85°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.295", 7.50mm Width) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-SOIC | 16-CDIP | 16-CERDIP |
