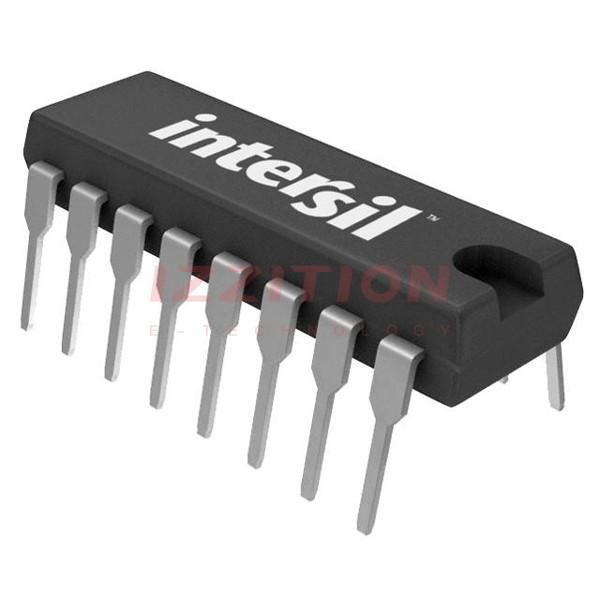

| Part Number | DG441DJZ | DG442DJZ | DG441DYZ | DG441DVZ | DG441DJ | DG441DJ+ |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Switch Circuit | SPST - NC | - | SPST - NC | SPST - NC | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | - | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | - | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 85Ohm | - | 85Ohm | 85Ohm | 85Ohm | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | 4Ohm (Max) | 4Ohm (Max) |
| Voltage - Supply, Single (V+) | 5V ~ 34V | - | 5V ~ 34V | 5V ~ 34V | 12V | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V | - | ±5V ~ 22V | ±5V ~ 22V | ±15V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 120ns | - | 250ns, 120ns | 250ns, 120ns | 220ns, 120ns | 250ns, 120ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | -1pC | - | -1pC | -1pC | -1pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF | - | 4pF, 4pF | 4pF, 4pF | 4pF, 4pF | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA | - | 500pA | 500pA | 500pA | 500pA |
| Crosstalk | -100dB @ 1MHz | - | -100dB @ 1MHz | -100dB @ 1MHz | -100dB @ 1MHz | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | - | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | - | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | - | 16-SOIC | 16-TSSOP | 16-PDIP | 16-PDIP |
