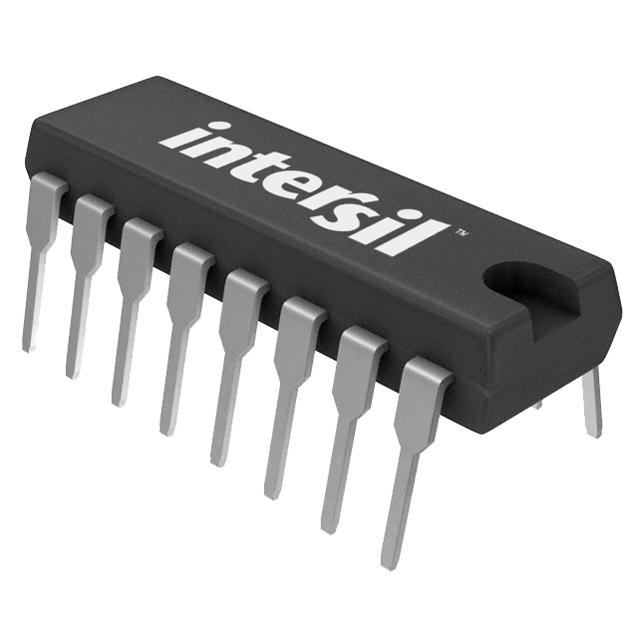

| Part Number | DG411DJZ | DG412DJZ | DG411DYZ | DG411DVZ | DG411DJ | DG411DJ+ |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Switch Circuit | SPST - NC | SPST - NO | SPST - NC | SPST - NC | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | 3Ohm (Max) |
| Voltage - Supply, Single (V+) | 5V ~ 44V | 5V ~ 44V | 5V ~ 44V | 5V ~ 44V | 5V ~ 44V | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 100pA | 250pA | 250pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 16-PDIP | 16-SOIC | 16-TSSOP | 16-PDIP | 16-PDIP |
