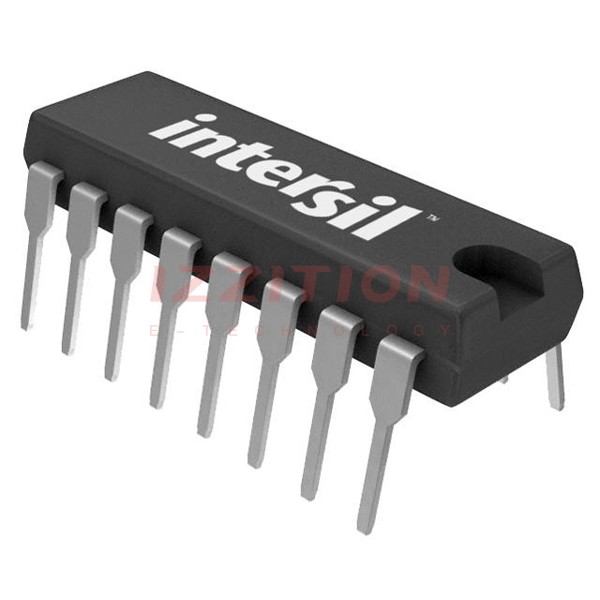

| Part Number | DG211CJZ | DG211CVZ | DG211CYZ | DG211CJ | DG211CJ+ |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Intersil | Intersil | Harris Corporation | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Active | Active |
| Switch Circuit | SPST - NC | - | SPST - NC | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | - | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | - | 4 | 4 | 4 |
| On-State Resistance (Max) | 175Ohm | - | 175Ohm | 175Ohm | 175Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | - | ±15V | ±15V | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 460ns, 450ns | - | 460ns, 450ns | 460ns, 450ns | 1µs, 500ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF | - | 5pF, 5pF | 5pF, 5pF | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA | - | 5nA | 5nA | 5nA |
| Crosstalk | -90dB @ 100kHz | - | -90dB @ 100kHz | -90dB @ 100kHz | -90dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) | - | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | - | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | - | 16-SOIC (0.154", 3.90mm Width) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | - | 16-SOIC | 16-PDIP | 16-PDIP |
