Please send RFQ , we will respond immediately.

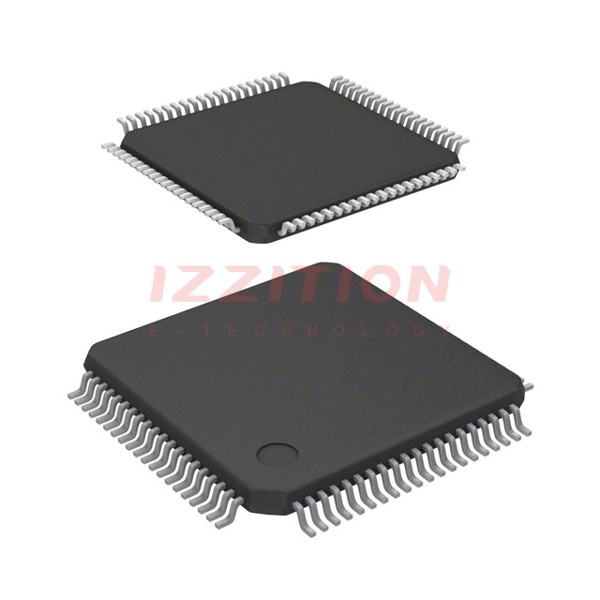

| Part Number | DF38324WWV | DF38327WWV | DF38344WWV | DF38524WWV | DF38424WWV | DF38124WWV | DF38324HWV | DF38324WV |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Core Processor | H8/300L | H8/300L | H8/300L | H8/300H | H8/300L | H8/300L | H8/300L | H8/300L |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 8MHz | 8MHz | 8MHz | 20MHz | 8MHz | 10MHz | 8MHz | 8MHz |
| Connectivity | SCI | SCI | SCI | SCI | CSI, UART/USART | SCI | SCI | SCI |
| Peripherals | LCD, PWM, WDT | LCD, PWM, WDT | LCD, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, PWM, WDT | LCD, POR, PWM, WDT | LCD, PWM, WDT | LCD, PWM, WDT |
| Number of I/O | 55 | 55 | 71 | 50 | 55 | 50 | 55 | 55 |
| Program Memory Size | 32KB (32K x 8) | 60KB (60K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 1K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 12x10b | A/D 8x10b | A/D 8x10b SAR | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 75°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-TQFP | 80-TQFP | 100-TQFP | 80-TQFP | 80-TQFP | 80-TQFP | 80-BQFP | 80-TQFP |
| Supplier Device Package | 80-TQFP (12x12) | 80-TQFP (12x12) | 100-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-QFP (14x14) | 80-TQFP (12x12) |
