Please send RFQ , we will respond immediately.

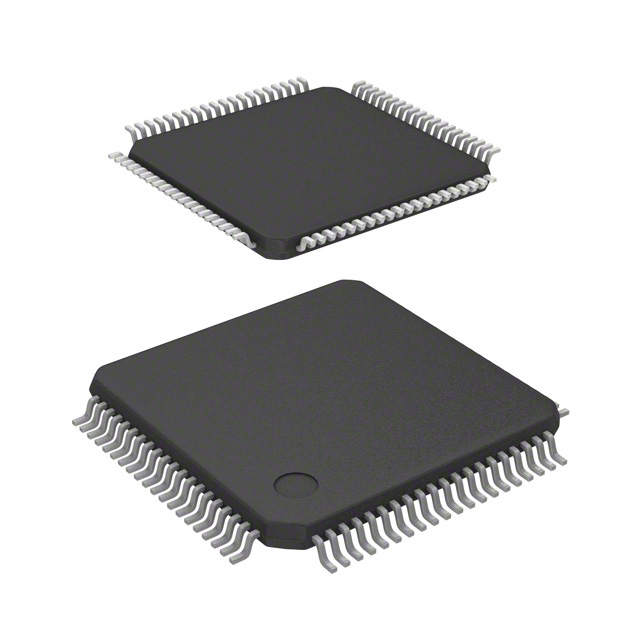

| Part Number | DF38124WV | DF38324WV | DF38124WWV | DF38524WV | DF38122WV | DF38124HV | DF38124HWV |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active | Active | Obsolete |
| Core Processor | H8/300L | H8/300L | H8/300L | H8/300H | H8/300L | H8/300L | H8/300L |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 10MHz | 8MHz | 10MHz | 10MHz | 10MHz | 10MHz | 10MHz |
| Connectivity | SCI | SCI | SCI | SCI | SCI | SCI | SCI |
| Peripherals | LCD, POR, PWM, WDT | LCD, PWM, WDT | LCD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT |
| Number of I/O | 50 | 55 | 50 | 50 | 50 | 50 | 50 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 1K x 8 | 2K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 75°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-TQFP | 80-TQFP | 80-TQFP | 80-TQFP | 80-TQFP | 80-BQFP | 80-BQFP |
| Supplier Device Package | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-QFP (14x14) | 80-QFP (14x14) |
