Please send RFQ , we will respond immediately.

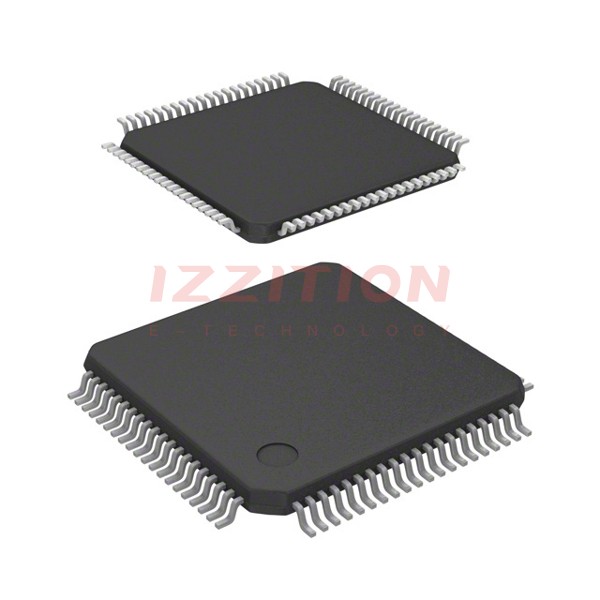

| Part Number | DF38076RW10V | DF38076RW10WV | DF38086RW10V | DF38076RH10V |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active |
| Core Processor | H8/300H | H8/300H | H8/300H | H8/300H |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 10MHz | 10MHz | 10MHz | 10MHz |
| Connectivity | I²C, IrDA, SCI | I²C, IrDA, SCI | I²C, IrDA, SCI | I²C, IrDA, SCI |
| Peripherals | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT | LCD, POR, PWM, WDT |
| Number of I/O | 55 | 55 | 55 | 55 |
| Program Memory Size | 52KB (52K x 8) | 52KB (52K x 8) | 52KB (52K x 8) | 52KB (52K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 3x10b, 2x14b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-TQFP | 80-TQFP | 80-TQFP | 80-BQFP |
| Supplier Device Package | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-TQFP (12x12) | 80-QFP (14x14) |
