Please send RFQ , we will respond immediately.

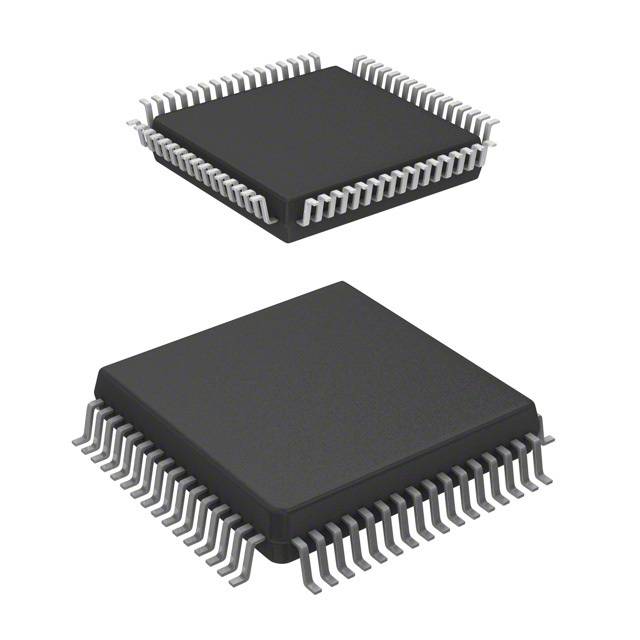

| Part Number | DF36034HV | DF36037HV | DF36054HV | DF36034GHV | DF36034HJ |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | H8/300H | H8/300H | H8/300H | H8/300H | H8/300H |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | CANbus, SCI, SSU | CANbus, SCI, SSU | CANbus, SCI, SSU | CANbus, SCI, SSU | CANbus, SCI, SSU |
| Peripherals | PWM, WDT | PWM, WDT | PWM, WDT | LVD, POR, PWM, WDT | PWM, WDT |
| Number of I/O | 45 | 45 | 45 | 45 | 45 |
| Program Memory Size | 32KB (32K x 8) | 56KB (56K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 2K x 8 | 3K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-BQFP | 64-BQFP | 64-BQFP | 64-BQFP | 64-BQFP |
| Supplier Device Package | 64-QFP (14x14) | 64-QFP (14x14) | 64-QFP (14x14) | 64-QFP (14x14) | 64-QFP (14x14) |
