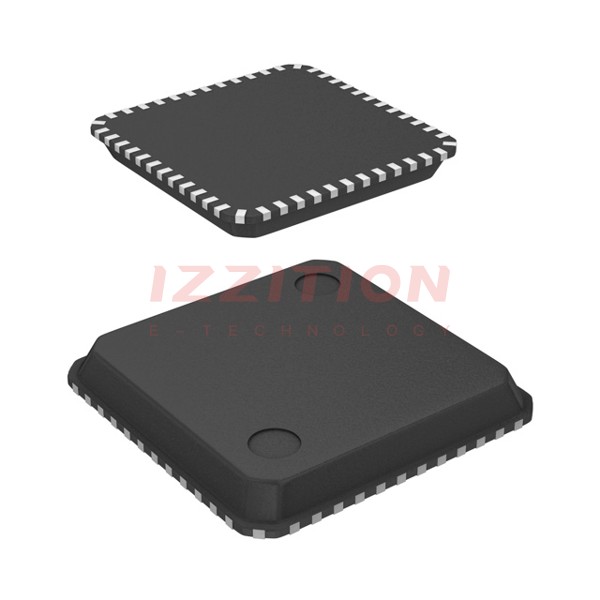

| Part Number | DF36024FTV | DF36024FXV | DF36024FYV | DF36024GFTV | DF36014FTV | DF36022FTV | DF36024FPV |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Obsolete | Not For New Designs |
| Core Processor | H8/300H | H8/300H | H8/300H | H8/300H | H8/300H | H8/300H | H8/300H |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | SCI | SCI | SCI | SCI | SCI | SCI | SCI |
| Peripherals | PWM, WDT | PWM, WDT | PWM, WDT | LVD, POR, PWM, WDT | PWM, WDT | PWM, WDT | PWM, WDT |
| Number of I/O | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 512 x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 4x10b | A/D 4x10b | A/D 4x10b | A/D 4x10b | A/D 4x10b | A/D 4x10b | A/D 4x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-VFQFN | 48-LQFP | 48-LQFP | 48-VFQFN | 48-VFQFN | 48-VFQFN | 64-LQFP |
| Supplier Device Package | 48-VQFN (7x7) | 48-LQFP (10x10) | 48-LFQFP (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 64-LFQFP (10x10) |
