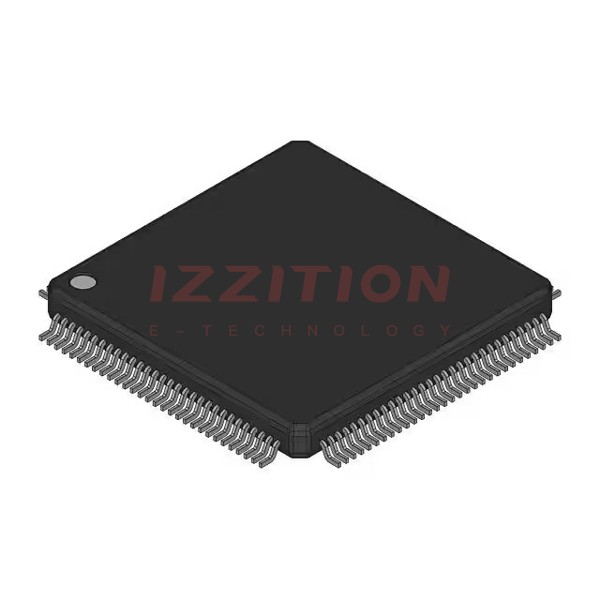

| Part Number | DF2329VF25V | DF2319VF25V | DF2326VF25V | DF2328VF25V | DF2329BVF25V | DF2329EVF25V | DF2329VF25IV |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Not For New Designs | Obsolete | Active |
| Core Processor | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz |
| Connectivity | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT | POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 86 | 70 | 86 | 86 | 86 | 86 | 86 |
| Program Memory Size | 384KB (384K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | 384KB (384K x 8) | 384KB (384K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 32K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 128-BFQFP | 100-BQFP | 128-BFQFP | 128-BFQFP | 128-BFQFP | 128-BFQFP | 128-BFQFP |
| Supplier Device Package | 128-QFP (14x20) | 100-QFP (14x20) | 128-QFP (14x20) | 128-QFP (14x20) | 128-QFP (14x20) | 128-QFP (14x20) | 128-QFP (14x20) |
