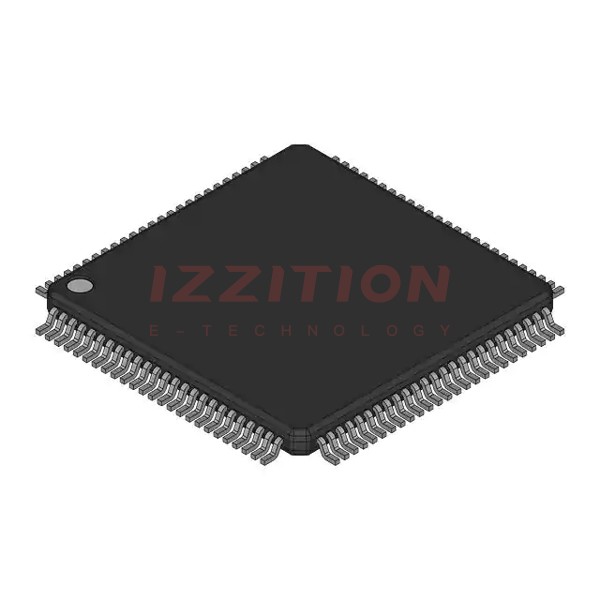

| Part Number | DF2238BFA13I | DF2238BFA13V | DF2238BFA13IV | DF2238BFA13 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Not For New Designs | Active | Obsolete |
| Core Processor | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 13MHz | 13MHz | 13MHz | 13MHz |
| Connectivity | I²C, SCI, SmartCard | I²C, SCI, SmartCard | I²C, SCI, SmartCard | I²C, SCI, SmartCard |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 72 | 72 | 72 | 72 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-BFQFP | 100-BFQFP | 100-BFQFP | 100-BFQFP |
| Supplier Device Package | 100-QFP (14x14) | 100-QFP (14x14) | 100-QFP (14x14) | 100-QFP (14x14) |
