Please send RFQ , we will respond immediately.

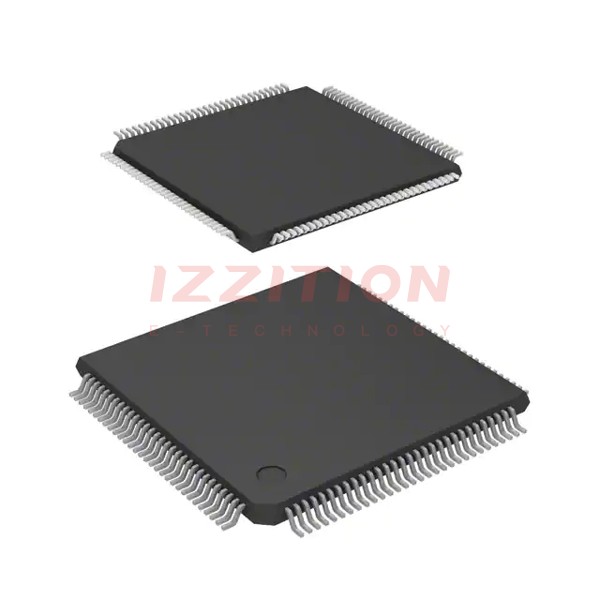

| Part Number | DF2215RUTE24V | DF2215TUTE24V | DF2215CUTE24V | DF2215RTE24V |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Core Processor | H8S/2000 | - | H8S/2000 | H8S/2000 |
| Core Size | 16-Bit | - | 16-Bit | 16-Bit |
| Speed | 24MHz | - | 24MHz | 24MHz |
| Connectivity | SCI, SmartCard, USB | - | SCI, SmartCard, USB | SCI, SmartCard, USB |
| Peripherals | DMA, POR, PWM, WDT | - | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 68 | - | 68 | 68 |
| Program Memory Size | 256KB (256K x 8) | - | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | - | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 20K x 8 | - | 16K x 8 | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | - | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 6x10b; D/A 2x8b | - | A/D 6x10b; D/A 2x8b | A/D 6x10b; D/A 2x8b |
| Oscillator Type | External | - | External | External |
| Operating Temperature | -20°C ~ 75°C (TA) | - | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |
| Package / Case | 120-TQFP | - | 120-TQFP | 120-TQFP |
| Supplier Device Package | 120-TQFP (14x14) | - | 120-TQFP (14x14) | 120-TQFP (14x14) |
