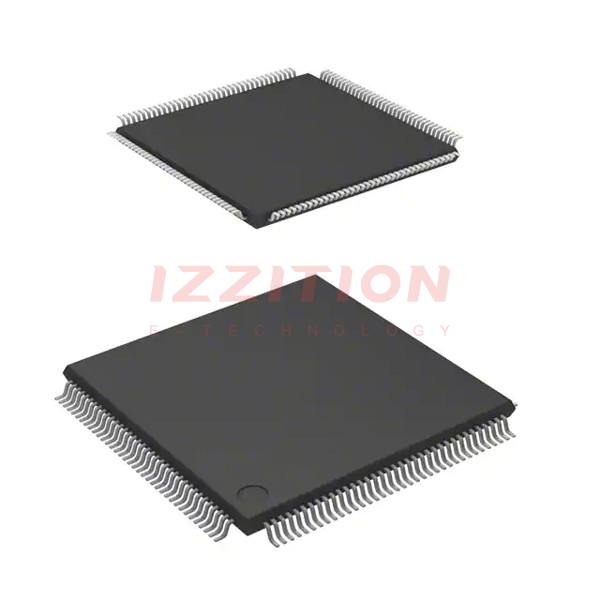

| Part Number | DF2117VT20HV | DF2117VT20IHV | DF2117VT20V | DF2117RVT20HV |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Obsolete | Active | Active |
| Core Processor | H8S/2600 | H8S/2600 | H8S/2600 | H8S/2600 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | FIFO, I²C, LPC, SCI, SmartCard | FIFO, I²C, LPC, SCI, SmartCard | FIFO, I²C, LPC, SCI, SmartCard | FIFO, I²C, LPC, SCI, SmartCard |
| Peripherals | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT |
| Number of I/O | 112 | 112 | 112 | 112 |
| Program Memory Size | 160KB (160K x 8) | 160KB (160K x 8) | 160KB (160K x 8) | 160KB (160K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 16x10b | A/D 16x10b | A/D 16x10b | A/D 16x10b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-TQFP | 144-TQFP | 144-TQFP | 144-TQFP |
| Supplier Device Package | 144-TQFP (16x16) | 144-TQFP (16x16) | 144-TQFP (16x16) | 144-TQFP (16x16) |
