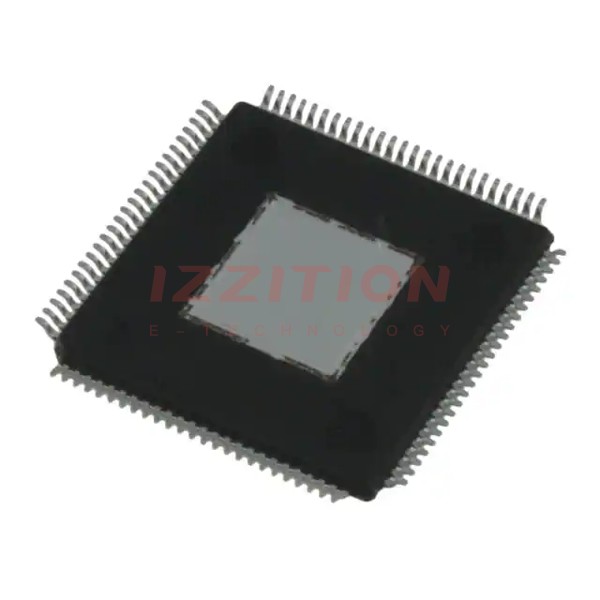

| Part Number | DAC1405D650HW-C1 | DAC1405D650HW-C18 | DAC1405D750HW-C1 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete |
| Number of Bits | 14 | 14 | 14 |
| Number of D/A Converters | 2 | 2 | 2 |
| Settling Time | 20µs (Typ) | 20ns (Typ) | 20ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V, 3V ~ 3.6V | 1.7V ~ 1.9V, 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V | 1.7V ~ 1.9V | 1.7V ~ 1.9V |
| INL/DNL (LSB) | - | - | - |
| Architecture | Binary-Weighted DAC, String DAC | Binary-Weighted DAC, String DAC | Binary-Weighted DAC, String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad |
| Supplier Device Package | 100-HTQFP (14x14) | 100-HTQFP (14x14) | 100-HTQFP (14x14) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
