| Part Number | DAC1403D160HW/C1,5 | DAC1403D160HW/C1:5 | DAC1203D160HW/C1,5 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete |
| Number of Bits | 14 | 14 | 12 |
| Number of D/A Converters | 2 | 2 | 2 |
| Settling Time | 43ns (Typ) | 43ns (Typ) | 40ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | Internal | Internal | Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| INL/DNL (LSB) | ±2.9, ±1.5 | ±2.9, ±1.5 | ±0.75, ±0.4 |
| Architecture | Binary-Weighted DAC, String DAC | Binary-Weighted DAC, String DAC | Binary-Weighted DAC, String DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

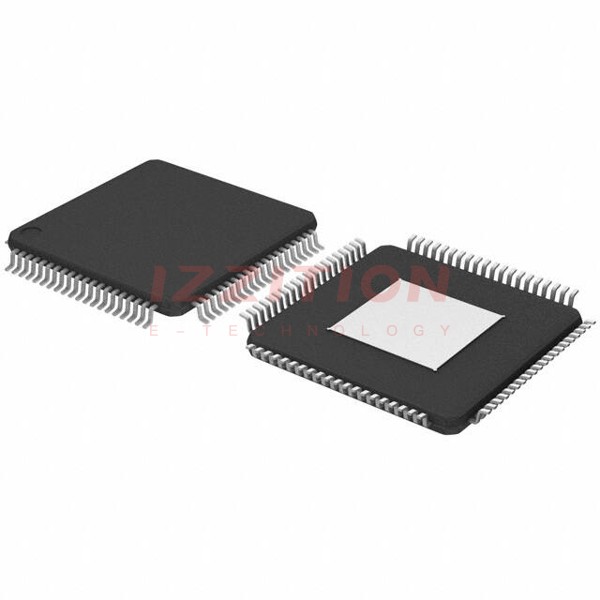

| Package / Case | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-HTQFP (12x12) | 80-HTQFP (12x12) | 80-HTQFP (12x12) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
