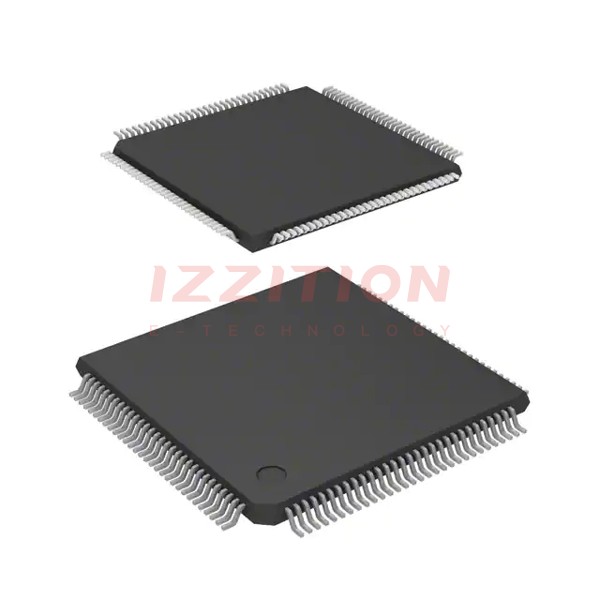

| Part Number | D12392TE20V | D12394TE20V | D12352TE20V | D12390TE20V |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Core Processor | H8S/2000 | H8S/2000 | H8S/2000 | H8S/2000 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard | SCI, SmartCard |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 87 | 87 | 87 | 87 |
| Program Memory Size | - | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - | - |
| RAM Size | 8K x 8 | 32K x 8 | 8K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 120-TQFP | 120-TQFP | 120-TQFP | 120-TQFP |
| Supplier Device Package | 120-TQFP (14x14) | 120-TQFP (14x14) | 120-TQFP (14x14) | 120-TQFP (14x14) |
