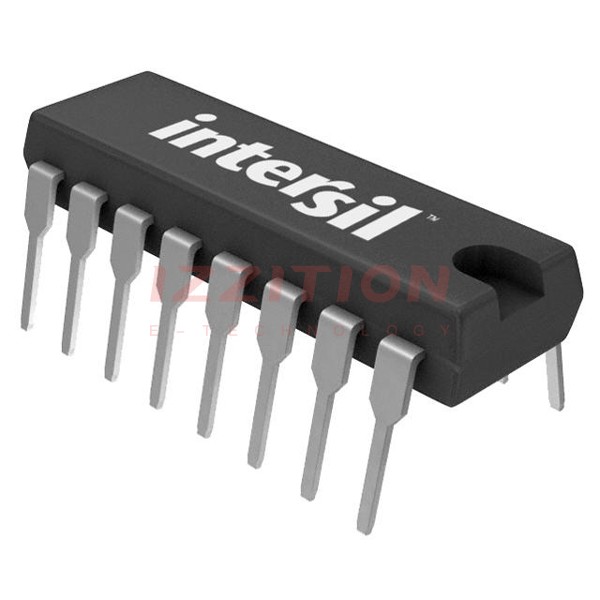

| Part Number | CA3280E | CA3080E | CA3240E | CA3260E |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Intersil | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Transconductance | Transconductance | General Purpose | CMOS |
| Number of Circuits | 2 | 1 | 2 | 2 |
| Output Type | - | Push-Pull | - | - |
| Slew Rate | 125V/µs | 75V/µs | 9V/µs | 10V/µs |
| Gain Bandwidth Product | 9 MHz | 2 MHz | 4.5 MHz | 4 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 1.8 µA | 2 µA | 10 pA | 2 pA |
| Voltage - Input Offset | 800 µV | 400 µV | 5 mV | 6 mV |
| Current - Supply | 2mA (x2 Channels) | 1mA | 8mA (x2 Channels) | 9mA (x2 Channels) |
| Current - Output / Channel | 410 µA | 650 µA | 40 mA | 45 mA |
| Voltage - Supply Span (Min) | 4 V | 4 V | 4 V | 4 V |
| Voltage - Supply Span (Max) | 30 V | 30 V | 36 V | 16 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 8-PDIP | 8-PDIP | 8-PDIP |
