Please send RFQ , we will respond immediately.
| Part Number | BCR3AS-12B-T13#B01 | BCR5AS-12B-T13#B01 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| Triac Type | Standard | Standard |
| Voltage - Off State | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 3 A | 5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A @ 60Hz | 50A @ 60Hz |
| Current - Gate Trigger (Igt) (Max) | 15 mA | 30 mA |
| Current - Hold (Ih) (Max) | - | - |
| Configuration | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

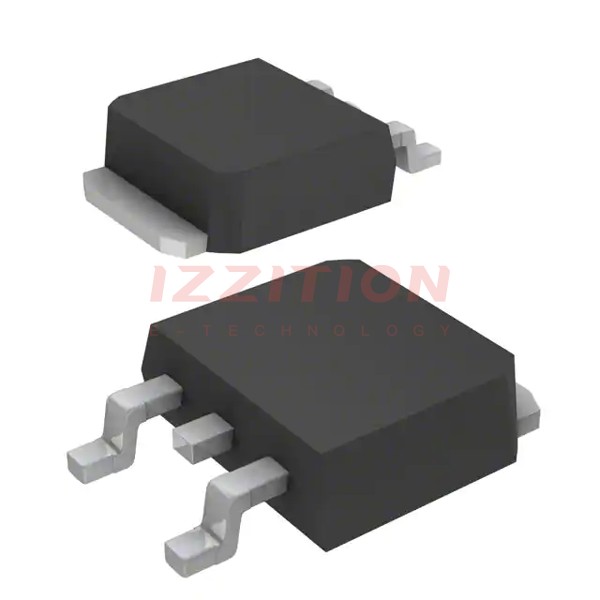

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | MP-3A | MP-3A |
