| Part Number | BCR16PM-16LH-1#B00 | BCR16LM-16LH-1#B00 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active |
| Triac Type | Standard | Standard |
| Voltage - Off State | 800 V | 800 V |
| Current - On State (It (RMS)) (Max) | 16 A | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 160A @ 60Hz | 160A @ 60Hz |
| Current - Gate Trigger (Igt) (Max) | 35 mA | 35 mA |
| Current - Hold (Ih) (Max) | - | - |
| Configuration | Single | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

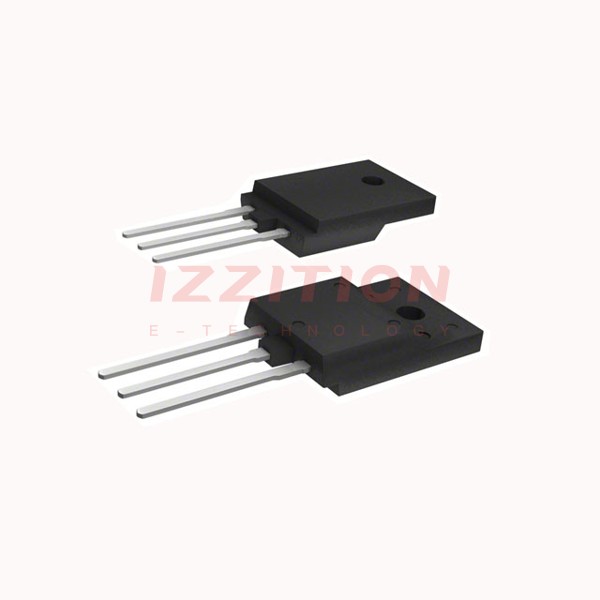

| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F | TO-220FL |
