| Part Number | ADC1412D105HN-C18 | ADC1412D125HN-C18 | ADC1413D105HN-C18 | ADC1412D105HN-C1 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 14 | 14 | 14 | 14 |
| Sampling Rate (Per Second) | 105M | 125M | 105M | 105M |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Input Type | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended | Differential, Single Ended |
| Data Interface | LVDS - Parallel, Parallel | LVDS - Parallel, Parallel | JESD204A | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 2 | 2 | 2 | 2 |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V | 2.85V ~ 3.4V | 2.85V ~ 3.4V | 2.85V ~ 3.4V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V | 1.65V ~ 3.6V | 1.65V ~ 1.95V | 1.65V ~ 3.6V |
| Features | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

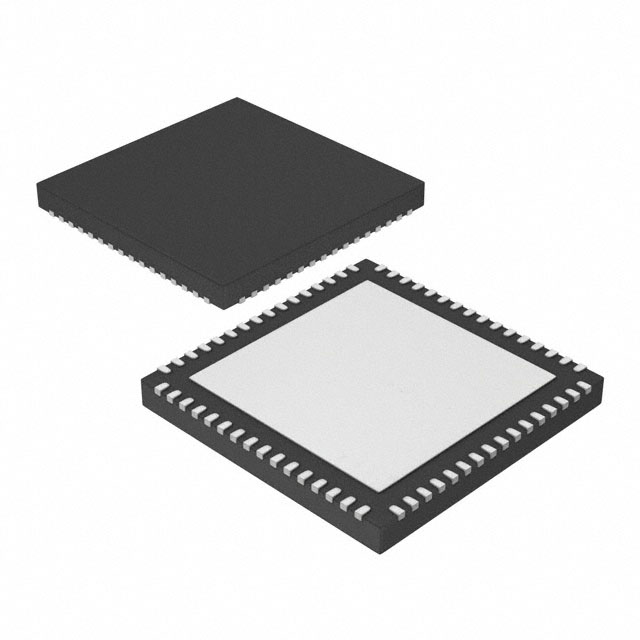

| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 56-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VFQFPN (9x9) | 64-VFQFPN (9x9) | 56-VFQFPN (8x8) | 64-VFQFPN (9x9) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
