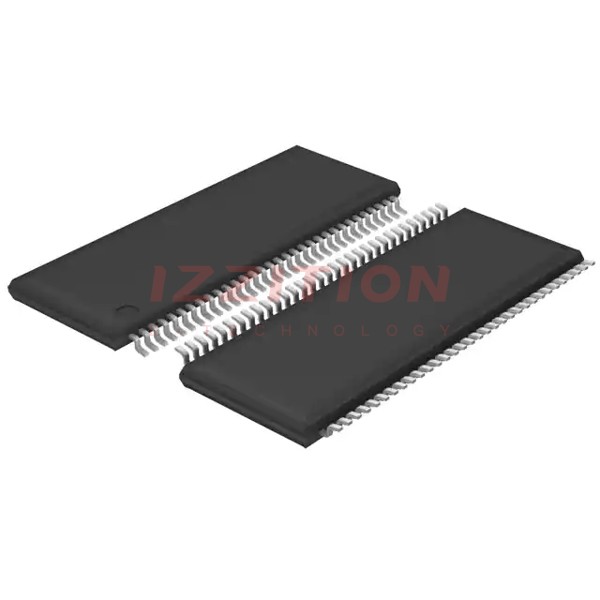

| Part Number | 9LPRS501SGLFT | 9LPRS501SKLFT | 9LPRS502SGLFT | 9LPR501SGLFT | 9LPRS501SGLF |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| PLL | Yes | Yes | Yes | Yes | Yes |
| Main Purpose | Intel CK505, PCI Express (PCIe) | Intel CK505, PCI Express (PCIe) | Intel CK505, PCI Express (PCIe) | Intel CK505, PCI Express (PCIe) | Intel CK505, PCI Express (PCIe) |
| Input | Crystal | Crystal | Crystal | Crystal | Crystal |
| Output | Clock | Clock | Clock | Clock | Clock |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:22 | 1:22 | 1:19 | 1:22 | 1:22 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 400MHz | 400MHz | 400MHz | 400MHz | 400MHz |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TFSOP (0.240", 6.10mm Width) | 64-VFQFN Exposed Pad | 56-TFSOP (0.240", 6.10mm Width) | 64-TFSOP (0.240", 6.10mm Width) | 64-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 64-TSSOP | 64-VFQFPN (9x9) | 56-TSSOP | 64-TSSOP | 64-TSSOP |
