| Part Number | 9FGV1005CQ506LTGI | 9FGV1005CQ506LTGI8 | 9FGV1005Q506LTGI | 9FGV1005CQ508LTGI | 9FGV1005CQ507LTGI | 9FGV1005CQ536LTGI | 9FGV1005CQ500LTGI | 9FGV1005CQ505LTGI |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Type | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal |
| Output | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:3 | 1:3 | 1:4 | 1:3 | 1:3 | 1:3 | 1:3 | 1:3 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 200MHz, 325MHz | 200MHz, 325MHz | 325MHz | 200MHz, 325MHz | 200MHz, 325MHz | 200MHz, 325MHz | 200MHz, 325MHz | 200MHz, 325MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

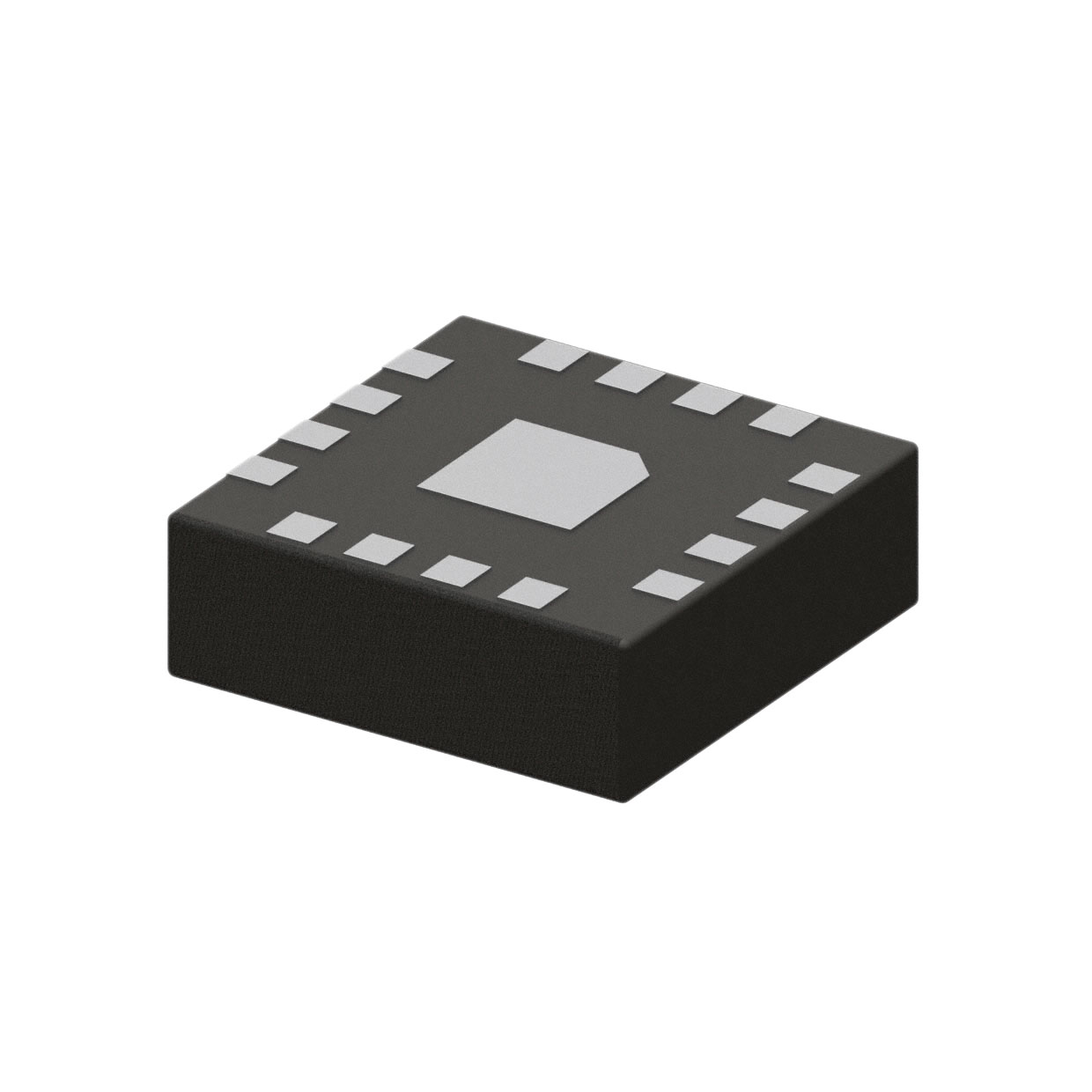

| Package / Case | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad |
| Supplier Device Package | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) |
