| Part Number | 9FGV1005A002LTGI8 | 9FGV1005A003LTGI8 | 9FGV1005A004LTGI8 | 9FGV1005C002LTGI8 | 9FGV1005A202LTGI8 | 9FGV1005A000LTGI8 | 9FGV1005A001LTGI8 | 9FGV1005A002LTGI |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator | Clock Generator |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Input | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal | HCSL, LVCMOS, LVDS, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL | HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:2 | 1:2 | 1:2 | 1:3 | 1:3 | 1:3 | 1:2 | 1:4 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 325MHz | 325MHz | 325MHz | 200MHz, 325MHz | 200MHz, 325MHz | 200MHz, 325MHz | 325MHz | 325MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

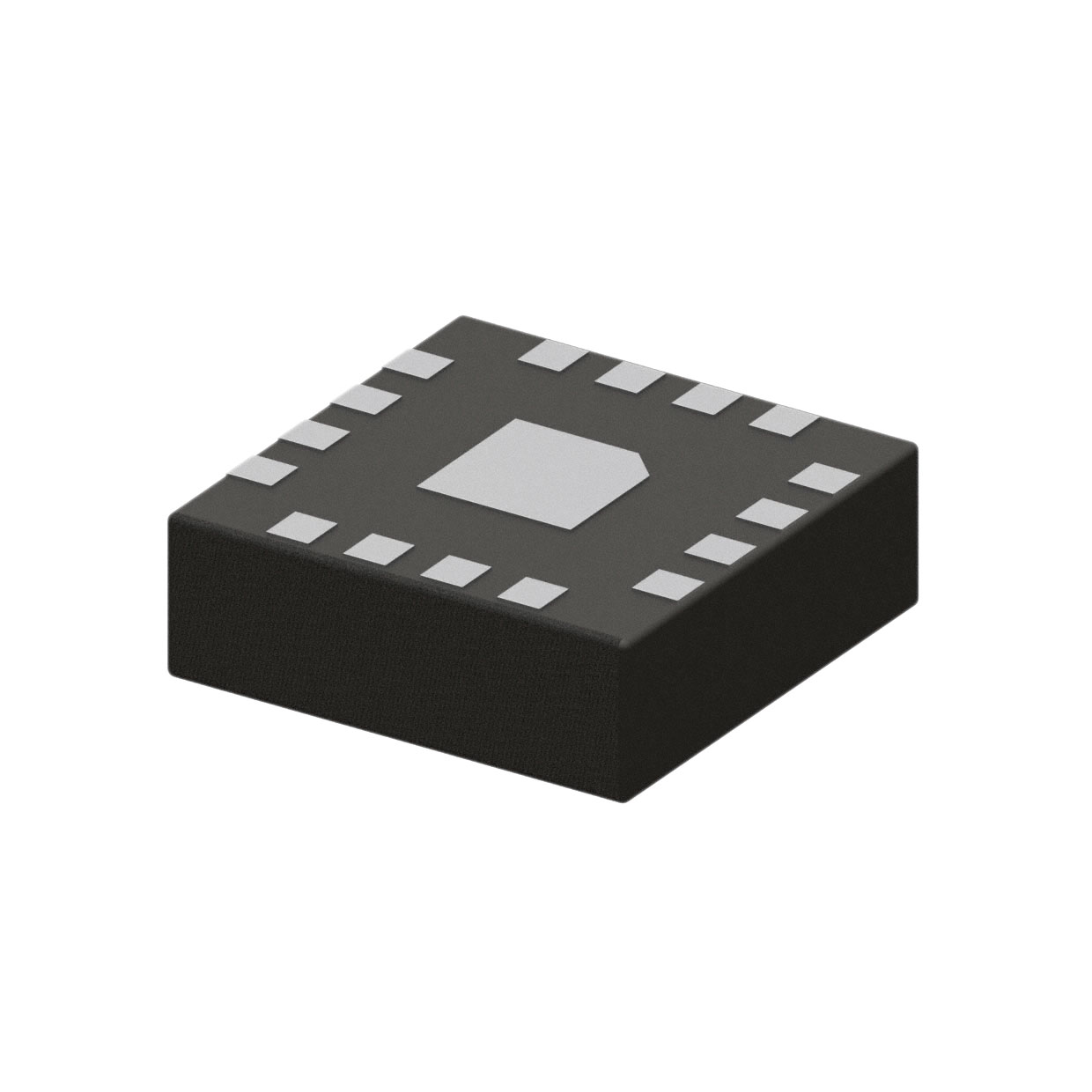

| Package / Case | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad | 16-TFLGA Exposed Pad |
| Supplier Device Package | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) | 16-LGA (3x3) |
