Please send RFQ , we will respond immediately.

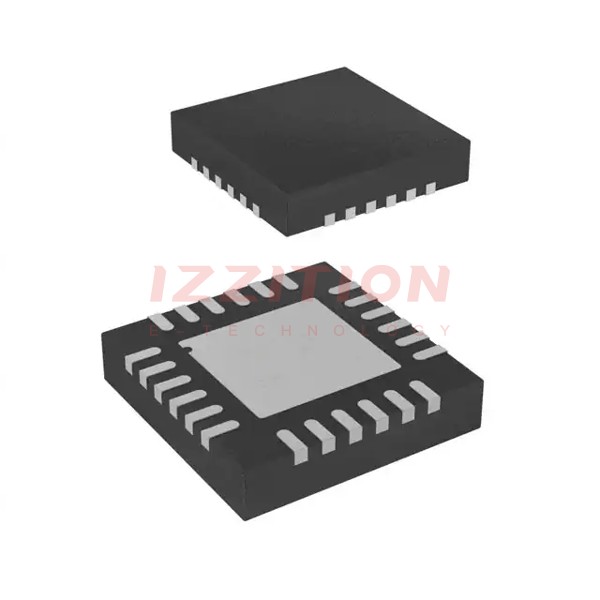

| Part Number | 9FGU0241AKLFT | 9FGV0241AKLFT | 9FGU0441AKLFT | 9FGU0641AKLFT | 9FGU0841AKLFT | 9FGU0231AKLFT | 9FGU0241AKILFT | 9FGU0241AKLF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Main Purpose | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) |
| Input | LVDS, Crystal | Crystal | LVDS, Crystal | LVDS, Crystal | LVDS, Crystal | LVDS, Crystal | LVDS, Crystal | LVDS, Crystal |
| Output | LP-HCSL, LVCMOS | HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:3 | 1:3 | 1:5 | 1:6 | 1:8 | 1:3 | 1:3 | 1:3 |
| Differential - Input:Output | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes | No/Yes |
| Frequency - Max | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Voltage - Supply | 1.425V ~ 1.575V | 1.7V ~ 1.9V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VFQFPN (4x4) | 24-QFN (4x4) | 32-VFQFPN (5x5) | 40-VFQFPN (5x5) | 48-VFQFPN (6x6) | 24-VFQFPN (4x4) | 24-VFQFPN (4x4) | 24-QFN (4x4) |
