| Part Number | 9DBU0241AKILFT | 9DBU0241AKLFT | 9DBV0241AKILFT | 9DBU0441AKILFT | 9DBU0541AKILFT | 9DBU0641AKILFT | 9DBU0741AKILFT | 9DBU0941AKILFT | 9DBU0841AKILFT | 9DBU0231AKILFT | 9DBU0241AKILF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Last Time Buy | Last Time Buy | Active | Active | Active |
| PLL | Yes with Bypass | Yes with Bypass | Yes | Yes | No | Yes | No | No | Yes with Bypass | Yes with Bypass | Yes |
| Main Purpose | PCI Express (PCIe) | PCI Express (PCIe) | Ethernet, PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) | PCI Express (PCIe) |
| Input | HCSL | HCSL | HCSL | HCSL, LVDS | HCSL, LVDS | HCSL, LVDS | HCSL, LVDS | HCSL, LVDS | HCSL, LVDS | HCSL | HCSL |
| Output | LP-HCSL | LP-HCSL | HCSL | LP-HCSL | LP-HCSL | LP-HCSL | LP-HCSL | LP-HCSL | LP-HCSL | LP-HCSL | LP-HCSL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:2 | 1:2 | 1:2 | 1:4 | 1:5 | 1:6 | 1:7 | 1:9 | 1:8 | 1:2 | 1:2 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Frequency - Max | 167MHz | 167MHz | 137.5MHz | 167MHz | 167MHz | 167MHz | 167MHz | 167MHz | 167MHz | 167MHz | 167MHz |
| Voltage - Supply | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.7V ~ 1.9V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V | 1.425V ~ 1.575V |
| Operating Temperature | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

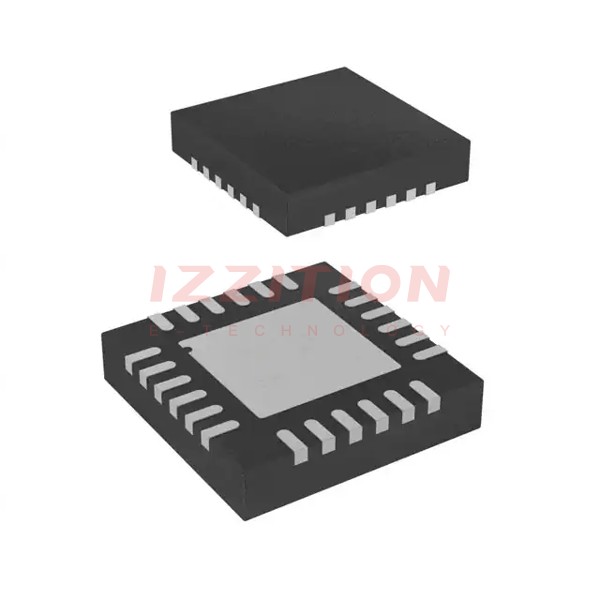

| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VFQFPN (4x4) | 24-VFQFPN (4x4) | 24-QFN (4x4) | 32-VFQFPN (5x5) | 32-VFQFPN (5x5) | 40-VFQFPN (5x5) | 40-VFQFPN (5x5) | 48-VFQFPN (6x6) | 48-VFQFPN (6x6) | 24-VFQFPN (4x4) | 24-QFN (4x4) |
