Please send RFQ , we will respond immediately.

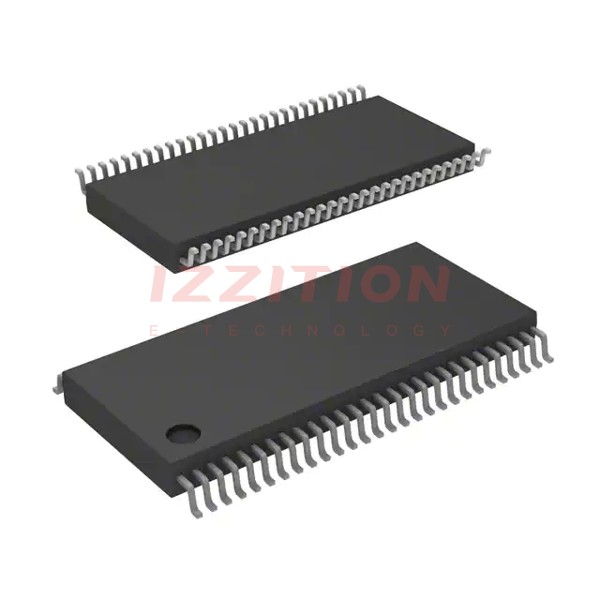

| Part Number | 954206BGLFT | 954306BGLFT | 954201BGLFT | 954206AGLFT | 954206BFLFT | 954206BGLF |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| PLL | Yes | No | Yes | No | Yes | Yes |
| Main Purpose | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU-M, Intel CPU | Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU-M, Intel CPU, PCI Express (PCIe) | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ | Intel CPU-M, Intel CPU, PCI Express (PCIe), Timing Control Hub™ |
| Input | Crystal | - | Crystal | - | Crystal | Crystal |
| Output | Clock | Clock | Clock | Clock | Clock | Clock |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:19 | - | 1:19 | - | 1:19 | 1:19 |
| Differential - Input:Output | No/Yes | - | No/Yes | - | No/Yes | No/Yes |
| Frequency - Max | 400MHz | 400MHz | 400MHz | 400MHz | 400MHz | 400MHz |
| Voltage - Supply | 3.135V ~ 3.465V | 3.3V | 3.135V ~ 3.465V | 3.3V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) | 64-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-BSSOP (0.295", 7.50mm Width) | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP | 64-TSSOP | 56-TSSOP | 56-TSSOP | 56-SSOP | 56-TSSOP |
