| Part Number | 8T49N222B-123NLGI | 8T49N222B-123NLGI8 | 8T49N222B-129NLGI | 8T49N222B-127NLGI | 8T49N222B-124NLGI | 8T49N222B-125NLGI | 8T49N222B-126NLGI | 8T49N222B-121NLGI | 8T49N222B-122NLGI |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy | Active | Active | Active | Active | Active |
| Type | - | - | Frequency Translator | Frequency Translator | - | - | - | - | - |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal |
| Output | LVDS | LVDS | LVDS, LVPECL | LVDS, LVPECL | LVDS | LVDS | LVDS | LVDS | LVDS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 3:2 | 3:2 | 3:2 | 3:2 | 3:2 | 3:2 | 3:2 | 1:2 | 3:2 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | No/Yes | Yes/Yes |
| Frequency - Max | 156.25MHz | 156.25MHz | 1.2GHz | 1.2GHz | 925MHz | 1GHz | 133.33MHz | 156.25MHz | 1GHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 2.625V, 3.135V ~ 3.465V | 2.375V ~ 2.625V, 3.135V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

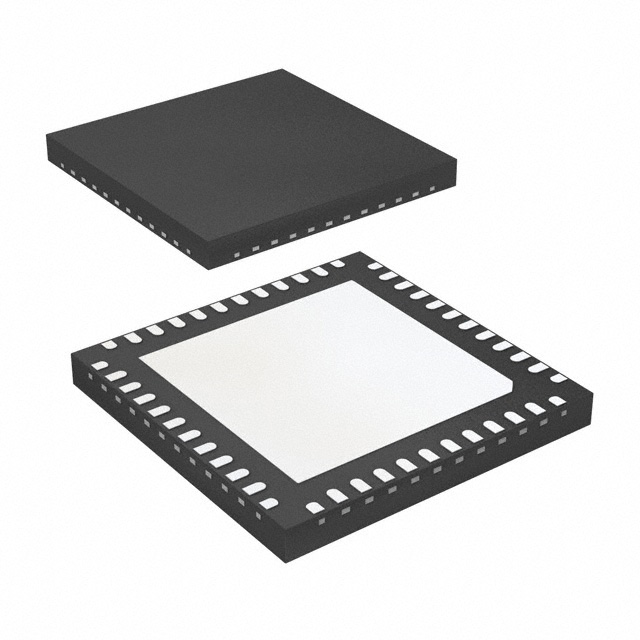

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VFQFPN (7x7) | 48-VFQFPN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) |
