Please send RFQ , we will respond immediately.
| Part Number | 8T49N222B-101NLGI | 8T49N222B-108NLGI | 8T49N222B-109NLGI | 8T49N222B-101NLGI8 | 8T49N222B-121NLGI | 8T49N222B-001NLGI | 8T49N222B-100NLGI |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Last Time Buy | Last Time Buy | Obsolete | Active | Active | Obsolete |
| Type | - | - | - | - | - | - | - |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | HCSL, LVDS, LVHSTL, LVPECL | HCSL, LVDS, LVHSTL, LVPECL, Crystal | Crystal | HCSL, LVDS, LVHSTL, LVPECL | Crystal | HCSL, LVDS, LVHSTL, LVPECL, Crystal | HCSL, LVDS, LVHSTL, LVPECL |
| Output | LVDS | LVDS | LVDS | LVDS | LVDS | LVPECL | LVDS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 2:2 | 3:2 | 1:2 | 2:2 | 1:2 | 3:2 | 2:2 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | No/Yes | Yes/Yes | No/Yes | Yes/Yes | Yes/Yes |
| Frequency - Max | 125MHz | 122.88MHz | 156.25MHz | 125MHz | 156.25MHz | 148.5MHz | 100MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

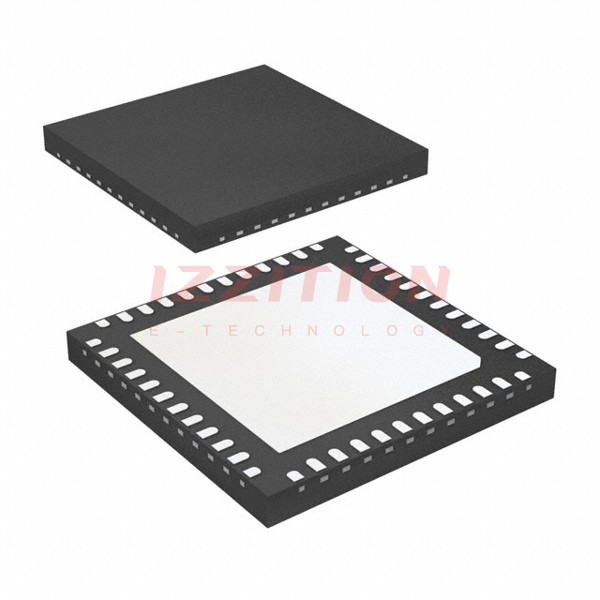

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) |
